DT1240A-04LP20-7

Active

Diodes Inc

ESD SUPPRESSOR TVS UNI-DIR 3.3V 8-PIN X2-DFN EP T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DT1240A-04LP20-7

Active

Diodes Inc

ESD SUPPRESSOR TVS UNI-DIR 3.3V 8-PIN X2-DFN EP T/R

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DT1240A-04LP20-7

Applications	VGA, USB, HDMI, DVI
Capacitance @ Frequency	0.55 pF
Current - Peak Pulse (10/1000µs)	5.5 A
Mounting Type	Surface Mount
Operating Temperature [Max]	85 C
Operating Temperature [Min]	-55 C

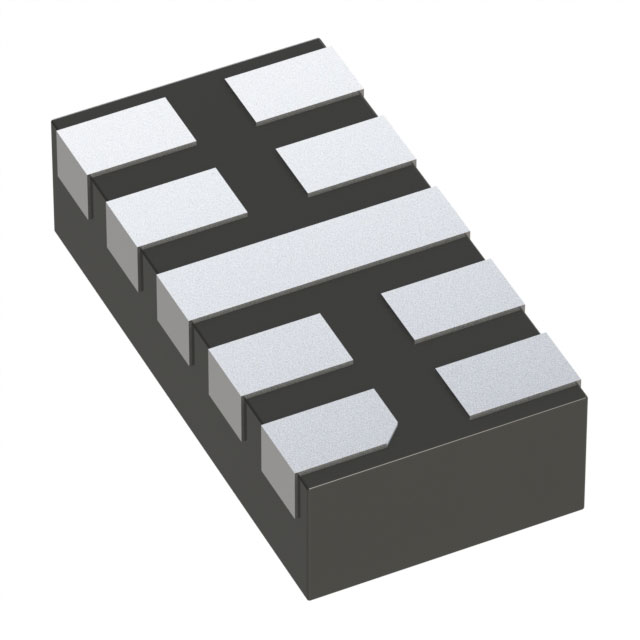

Package / Case	8-XFDFN Exposed Pad
Power - Peak Pulse	38 W
Power Line Protection	True
Supplier Device Package	X2-DFN2010-8 Type B
Type	Steering
Unidirectional Channels [custom]	4
Voltage - Breakdown (Min) [Min]	5 V
Voltage - Clamping (Max) @ Ipp [Max]	8.5 V
Voltage - Reverse Standoff (Typ)	3.3 V

DT1240A-08LP3810 Series

4-CHANNEL LOW CAPACITANCE ESD PROTECTION ARRAY

Part	Voltage - Breakdown (Min) [Min]	Supplier Device Package	Unidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp	Applications	Type	Power - Peak Pulse	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Reverse Standoff (Typ)	Mounting Type	Voltage - Clamping (Max) @ Ipp [Max]	Current - Peak Pulse (10/1000µs)	Capacitance @ Frequency	Grade	Qualification
Diodes Inc DT1240V3-04SO-7	6 V	SOT-26	4	8.8 V	HDMI	Steering	60 W	85 C	-55 C	SOT-23-6	3.3 V	Surface Mount
Diodes Inc DT1240-04LP-7	6 V	U-DFN2510-10	4		Ethernet HDMI	Steering	60 W	85 C	-55 C	10-UFDFN	5.5 V	Surface Mount	11 V
Diodes Inc DT1240A-04LP20-7	5 V	X2-DFN2010-8 Type B	4		DVI HDMI USB VGA	Steering	38 W	85 C	-55 C	8-XFDFN Exposed Pad	3.3 V	Surface Mount	8.5 V	5.5 A	0.55 pF
Diodes Inc DT1240A-04LPQ-7	5 V	U-DFN2510-10	4		DVI HDMI USB	Steering	52 W	85 °C	-55 °C	10-UFDFN	3.3 V	Surface Mount	9.5 V		0.55 pF	Automotive	AEC-Q101
Diodes Inc DT1240A-08LP3810-7	5 V	U-DFN3810-9 (Type B)	8		DVI HDMI USB	Steering	55 W	85 C	-55 C	9-UDFN	3.3 V	Surface Mount	10 V		0.6 pF
Diodes Inc DT1240A-04LP-7	5 V	U-DFN2510-10	4			Steering	52 W	85 C	-55 C	10-UFDFN	3.3 V	Surface Mount	9.5 V		0.55 pF	Automotive	AEC-Q101
Diodes Inc DT1240A-08LP3810Q-7	5 V	U-DFN3810-9 (Type B)	8		DVI HDMI USB	Steering	55 W	85 °C	-55 °C	9-UDFN	3.3 V	Surface Mount	10 V	5.5 A	0.6 pF	Automotive	AEC-Q101
Diodes Inc DT1240E-04LP-7	5 V	U-DFN2510-10	4			Steering	47 W	85 C	-55 C	10-UFDFN	3.3 V	Surface Mount	9.5 V	5 A	0.55 pF	Automotive	AEC-Q101

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.38
		10	$ 0.23
		100	$ 0.14
		500	$ 0.11
		1000	$ 0.10
	Digi-Reel®	1	$ 0.38
		10	$ 0.23
		100	$ 0.14
		500	$ 0.11
		1000	$ 0.10
	Tape & Reel (TR)	3000	$ 0.07
		6000	$ 0.06
		9000	$ 0.06
		15000	$ 0.06
		21000	$ 0.05
		30000	$ 0.05

Description

General part information

DT1240A-08LP3810 Series

This new generation TVS is designed to protect sensitive electronics from the damage due to ESD. The combination of small size and high ESD surge capability makes it ideal for use in portable applications such as cellular phones, digital cameras, and MP3 players.
