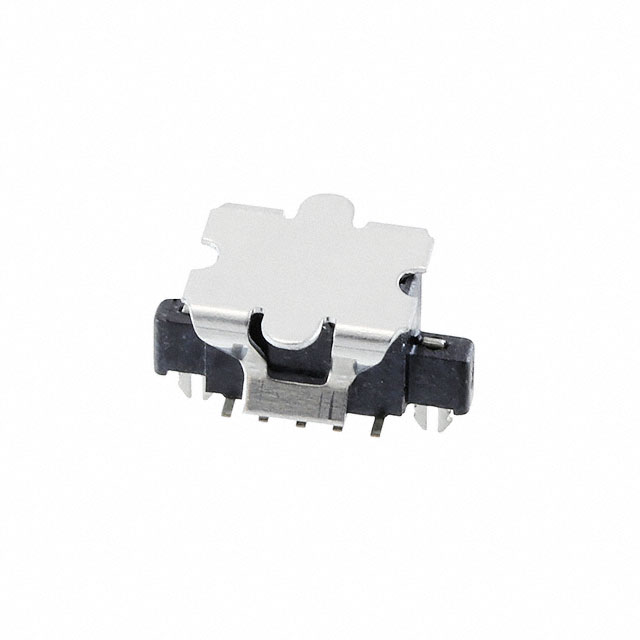

5-147384-1
ActiveTE Connectivity Raychem Cable Protection
10 50/50 GRID SMT RCPT VC LF
Deep-Dive with AI
Search across all available documentation for this part.
5-147384-1
ActiveTE Connectivity Raychem Cable Protection
10 50/50 GRID SMT RCPT VC LF
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5-147384-1 |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 150 Áin |
| Contact Finish Thickness - Post | 3.81 Ám |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating (Amps) | 500 mA |
| Fastening Type | Push-Pull |
| Features | Pick and Place, Board Lock |
| Insulation Color | Black |
| Insulation Height | 0.187 in |
| Insulation Height | 4.75 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mated Stacking Heights | 6.35 mm, 8.13 mm, 9.91 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -65 ░C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
AMPMODU 50/50 Grid Series
Headers & Wire Housings minimatch 17 pos male
