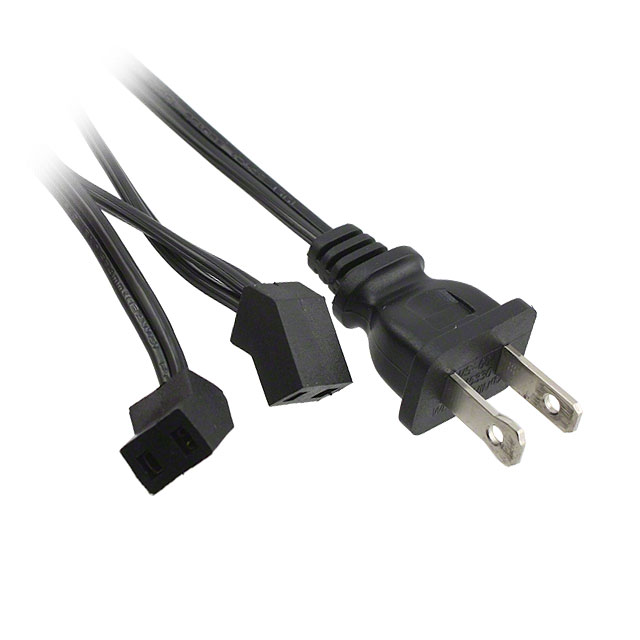

C45-2DC-144P

Active

Orion Fans

45 DEGREE, 2 HEADS, 144IN LEAD WITH PLUG, 10A 125/250VAC

Search across all available documentation for this part.

Active

Orion Fans

45 DEGREE, 2 HEADS, 144IN LEAD WITH PLUG, 10A 125/250VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.35
Newark	Each	1	$ 8.40
		1000	$ 7.70

General part information

Fan Power Cord Fan Terminal Receptacle 45° (2) 144.0" (3.66m) NEMA 1-15 Plug

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	C45-2DC-144P	C45-2D Series

1st Connector	Fan Terminal Receptacle 45° (2)	Fan Terminal Receptacle 45° (2)
2nd Connector	NEMA 1-15 Plug	NEMA 1-15 Plug, Open Wires
Approval Agency Marking	cURus, TUV	cURus, TUV
Cord Type	SPT-1	SPT-1
Features	Daisy Chain	Daisy Chain
Length	-	2.13 - 609.6 mm
Length	-	12 - 84 in
Length	-	1.52 - 304.8 mm
Length	-	5 - 72 in
Number of Conductors	2	2
Style	Female Receptacle to Male Plug	Female Receptacle to Male Plug, Female Receptacle to Cable
Wire Gauge	18 AWG	18 AWG

RCP CORD, 45DEG, 24INCH, ORIONS FANS ROHS COMPLIANT: YES

Part	Style	2nd Connector	1st Connector	Features	Cord Type	Length [x]	Length [x]	Number of Conductors	Approval Agency Marking	Wire Gauge	Length	Length
Orion Fans C45-2DC-24P	Female Receptacle to Male Plug	NEMA 1-15 Plug	Fan Terminal Receptacle 45° (2)	Daisy Chain	SPT-1	609.6 mm	24 in	2	cURus, TUV	18 AWG
Orion Fans C45-2DC-144P	Female Receptacle to Male Plug	NEMA 1-15 Plug	Fan Terminal Receptacle 45° (2)	Daisy Chain	SPT-1			2	cURus, TUV	18 AWG
Orion Fans C45-2DC-24	Female Receptacle to Cable	Open Wires	Fan Terminal Receptacle 45° (2)	Daisy Chain	SPT-1		12 in	2	cURus, TUV	18 AWG	304.8 mm
Orion Fans C45-2DC-36	Female Receptacle to Cable	Open Wires	Fan Terminal Receptacle 45° (2)	Daisy Chain	SPT-1			2	cURus, TUV	18 AWG	91.44 cm	36 in
Orion Fans C45-2DC-72P	Female Receptacle to Male Plug	NEMA 1-15 Plug	Fan Terminal Receptacle 45° (2)	Daisy Chain	SPT-1			2	cURus, TUV	18 AWG	1.83 m	72 in
Orion Fans C45-2DC-60	Female Receptacle to Cable	Open Wires	Fan Terminal Receptacle 45° (2)	Daisy Chain	SPT-1			2	cURus, TUV	18 AWG	1.52 m	5 '
Orion Fans C45-2DC-84	Female Receptacle to Cable	Open Wires	Fan Terminal Receptacle 45° (2)	Daisy Chain	SPT-1	2.13 m	84 "	2	cURus, TUV	18 AWG
Orion Fans C45-2DC24-72P	Female Receptacle to Male Plug	NEMA 1-15 Plug	Fan Terminal Receptacle 45° (2)	Daisy Chain	SPT-1			2	cURus, TUV	18 AWG	1.83 m	72 in
