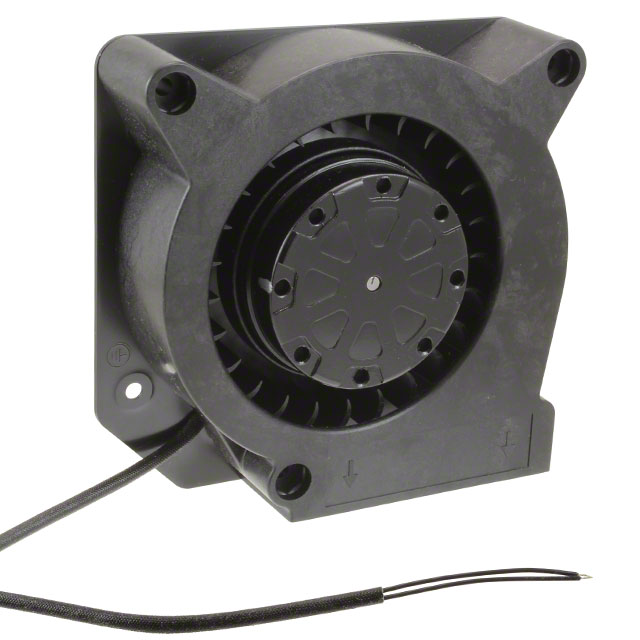

UF90DPB23-H1S2A

Active

Mechatronics Fan Group

BLOWER 120X37MM 230VAC

Search across all available documentation for this part.

Active

Mechatronics Fan Group

BLOWER 120X37MM 230VAC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UF90DPB23-H1S2A	UF90D Series

Air Flow	0.588 mł/min	0.588 mł/min
Air Flow	21 CFM	21 CFM
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	100 mA	0.21 - 100 A
Fan Type	Blower, Centrifugal	Blower, Centrifugal
Features	Thermal Overload Protector (TOP)	Thermal Overload Protector (TOP)
Material - Blade	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material - Frame	Aluminum	Aluminum
Noise	51 dB(A)	51 dB(A)
Operating Temperature [Max]	70 °C	60 - 70 °C
Operating Temperature [Max]	70 °C	60 - 70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	18 W	18 W
RPM	2700 RPM	2700 RPM
Size / Dimension [x]	120 mm	120 mm
Size / Dimension [y]	120 mm	120 mm
Static Pressure	124.5 Pa	124.5 Pa
Static Pressure	0.5 in H2O	0.5 in H2O
Termination	2 Wire Leads	2 Wire Leads
Voltage - Rated	230 VAC	115 - 230 VAC
Weight	1.4 lbs	1.4 lbs
Weight	635 g	635 g
Width [x]	37.2 mm	37.2 mm

BLOWER 120X37MM 115VAC

Part	Voltage - Rated	Current Rating (Amps)	Width [x]	Weight	Weight	Features	Material - Frame	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Bearing Type	RPM	Fan Type	Static Pressure	Static Pressure	Approval Agency	Termination	Power (Watts)	Material - Blade	Noise	Size / Dimension [y]	Size / Dimension [x]	Air Flow	Air Flow
Mechatronics Fan Group UF90DPB12-H1S2A	115 VAC	0.21 A	37.2 mm	1.4 lbs	635 g	Thermal Overload Protector (TOP)	Aluminum	60 °C	60 °C	-40 °C	-40 °C	Ball	2700 RPM	Blower, Centrifugal	124.5 Pa	0.5 in H2O	CE, cUL, TUV, UL	2 Wire Leads	18 W	Nylon, Polyamide (PA)	51 dB(A)	120 mm	120 mm
Mechatronics Fan Group UF90DPB23-H1S2A	230 VAC	100 mA	37.2 mm	1.4 lbs	635 g	Thermal Overload Protector (TOP)	Aluminum	70 °C	70 °C	-40 °C	-40 °C	Ball	2700 RPM	Blower, Centrifugal	124.5 Pa	0.5 in H2O	CE, cUL, TUV, UL	2 Wire Leads	18 W	Nylon, Polyamide (PA)	51 dB(A)	120 mm	120 mm	0.588 mł/min	21 CFM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower, Centrifugal 230VAC Square - 120mm L x 120mm H Ball 21.0 CFM (0.588mł/min) 2 Wire Leads
