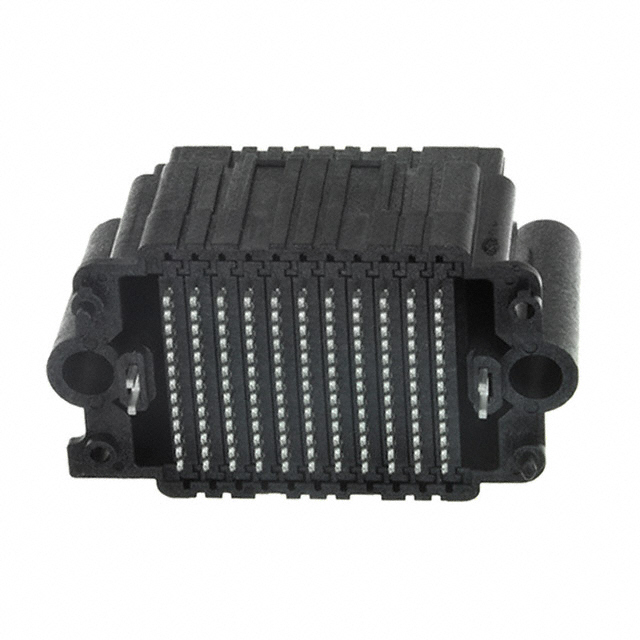

HDAF-11-18.0-S-13-2
ActiveSamtec Inc.
CONN HD ARRAY RCPT 143P SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
HDAF-11-18.0-S-13-2
ActiveSamtec Inc.
CONN HD ARRAY RCPT 143P SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HDAF-11-18.0-S-13-2 |
|---|---|
| Connector Type | High Density Array, Female |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Board Guide |
| Height Above Board [z] | 20.51 mm |
| Height Above Board [z] | 0.807 " |
| Mated Stacking Heights | 30 mm, 35 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 143 |
| Number of Rows | 13 |
| Pitch [x] | 1.2 mm |
| Pitch [x] | 0.047 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 40.39 | |
| 10 | $ 31.46 | |||
Description
General part information
HDAF-11 Series
143 Position Connector High Density Array, Female Surface Mount Gold
