Technical Specifications
Parameters and characteristics for this part
| Specification | AP7343Q-18FDZW-7 |
|---|---|
| Control Features | Enable, Current Limit |
| Current - Output | 300 mA |
| Current - Quiescent (Iq) | 60 µA |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Protection Features | Over Current, Over Temperature |
| PSRR | 75 dB |
| Qualification | AEC-Q100 |

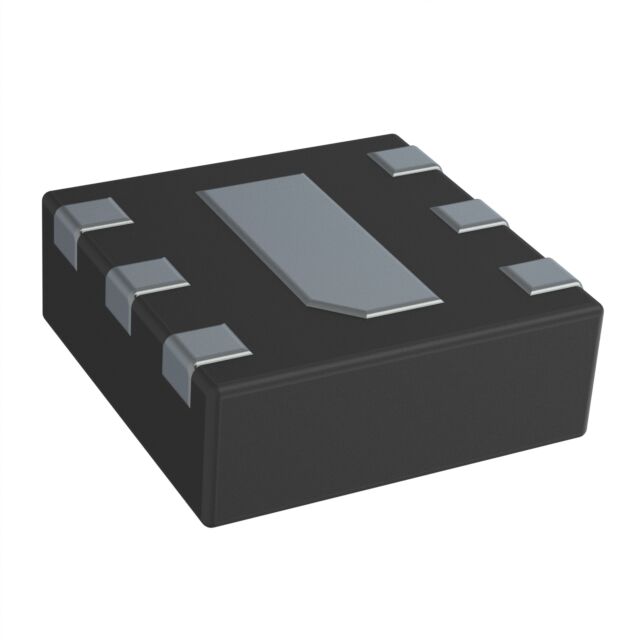

| Supplier Device Package | W-DFN2020-6 (Type A1) |
| Voltage - Input (Max) [Max] | 5.25 V |
| Voltage - Output (Min/Fixed) | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.72 | |
| 10 | $ 0.43 | |||
| 25 | $ 0.36 | |||
| 100 | $ 0.27 | |||
| 250 | $ 0.23 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.18 | |||
| Digi-Reel® | 1 | $ 0.72 | ||
| 10 | $ 0.43 | |||
| 25 | $ 0.36 | |||
| 100 | $ 0.27 | |||
| 250 | $ 0.23 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.18 | |||
| Tape & Reel (TR) | 3000 | $ 0.15 | ||
| 6000 | $ 0.14 | |||
| 9000 | $ 0.13 | |||
| 15000 | $ 0.12 | |||
| 21000 | $ 0.12 | |||
| 30000 | $ 0.12 | |||
| 75000 | $ 0.11 | |||
Description
General part information
AP7343Q Series
The AP7343Q is a low dropout regulator with high output voltage accuracy, low RDS(ON), high PSRR, low output noise and low quiescent current. This regulator is based on a CMOS process.
