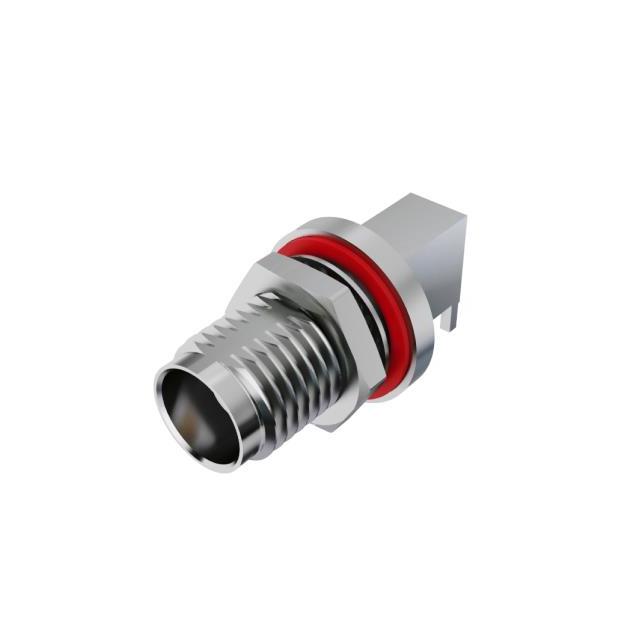

RFPC-TNC01-FN-A

Active

GCT

TNC PCB MOUNT RIGHT ANGLE BULKHE

Search across all available documentation for this part.

Active

GCT

TNC PCB MOUNT RIGHT ANGLE BULKHE

Technical Specifications

Parameters and characteristics for this part

Specification	RFPC-TNC01-FN-A

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	IP Rated Unmated
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder

Part	Center Contact Material	Mounting Feature	Number of Ports	Contact Termination	Center Contact Plating	Ingress Protection	Body Finish	Frequency - Max [Max]	Impedance	Connector Type	Dielectric Material	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Shield Termination	Features	Body Material
GCT RFPC-TNC01-FN-A	Phosphor Bronze	Bulkhead - Front Side Nut	1	Solder	Gold	IP67/IP68 - Dust Tight Waterproof	Nickel	4 GHz	50 Ohms	Female Socket Jack	Polytetrafluoroethylene (PTFE)	TNC	155 °C	-55 °C	Through Hole Right Angle	Solder	IP Rated Unmated	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TNC Connector Jack, Female Socket 50 Ohms Through Hole, Right Angle Solder
