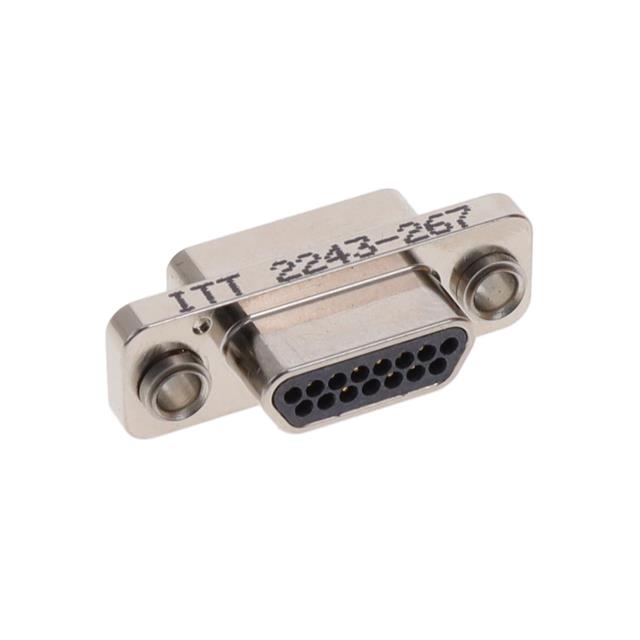

MDM-15PSF-A174

Active

ITT Cannon, LLC

CONN MICRO-D PIN 15 POS SOLDER POT ST PANEL MOUNT 15 TERMINAL 1 PORT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMicrominiature Catalog

MDM-15PSF-A174

Active

ITT Cannon, LLC

CONN MICRO-D PIN 15 POS SOLDER POT ST PANEL MOUNT 15 TERMINAL 1 PORT

Deep-Dive with AI

DocumentsMicrominiature Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MDM-15PSF-A174

Connector Style	Micro-D, D-Type
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Liquid Crystal Polymer (LCP)
Features	Shielded
Flange Feature	Housing/Shell (Unthreaded)
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Aluminum, Nickel Plated, Electroless
Shell Size, Connector Layout [custom]	0.043
Shell Size, Connector Layout [custom]	0.05

MDM-1 Series

Part	Number of Rows	Contact Type	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [y]	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Connector Type	Termination	Dielectric Material	Contact Finish	Number of Positions	Features	Current Rating (Amps)	Contact Material	Shell Material, Finish	Connector Style	Mounting Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
ITT Cannon, LLC MDM-100SCBRP	8	Signal	0.05	0.1	-55 °C	125 °C	Female Screwlock (4-40) Mating Side	Receptacle Female Sockets	Solder	Liquid Crystal Polymer (LCP)	Gold	100	Shielded	3 A	Copper Alloy	Aluminum Yellow Chromate Plated Cadmium	D-Type Micro-D	Panel Mount Right Angle Through Hole
ITT Cannon, LLC MDM-15SSM2-F222
ITT Cannon, LLC MDM-100PCBR	8	Signal	0.05	0.1	-55 °C	125 °C	Housing/Shell (Unthreaded)	Male Pins Plug	Solder	Liquid Crystal Polymer (LCP)	Gold	100	Shielded	3 A	Copper Alloy	Aluminum Yellow Chromate Plated Cadmium	D-Type Micro-D	Panel Mount Right Angle Through Hole
ITT Cannon, LLC MDM-15PSK-A174	2	Signal			-55 °C	125 °C	Cable Side Male Jackscrew (2-56)	Male Pins Plug		Liquid Crystal Polymer (LCP)	Gold	15	Shielded	3 A	Copper Alloy	Aluminum Electroless Nickel Plated	D-Type Micro-D		0.043	0.05
ITT Cannon, LLC MDM-15SBSM7	2	Signal	0.05	0.1	-55 °C	125 °C	Female Screwlock (2-56) Mating Side	Receptacle Female Sockets	Solder	Liquid Crystal Polymer (LCP)	Gold	15	Shielded	3 A	Copper Alloy	Aluminum Yellow Chromate Plated Cadmium	D-Type Micro-D	Panel Mount Through Hole
ITT Cannon, LLC MDM-100PSK-A172
ITT Cannon, LLC MDM-15PCBRM7-F222	3	Signal	0.05	0.1	-55 °C	200 °C	Female Screwlock (2-56) Mating Side	Male Pins Plug	Solder	Liquid Crystal Polymer (LCP)	Gold	15	Shielded	3 A	Copper Alloy	Aluminum Yellow Chromate Plated Cadmium	D-Type Micro-D	Panel Mount Through Hole
ITT Cannon, LLC MDM-15PSF-A174	2	Signal			-55 °C	125 °C	Housing/Shell (Unthreaded)	Male Pins Plug		Liquid Crystal Polymer (LCP)	Gold	15	Shielded	3 A	Copper Alloy	Aluminum Electroless Nickel Plated	D-Type Micro-D		0.043	0.05
ITT Cannon, LLC MDM-100SCBRM17	8	Signal	0.05	0.1	-55 °C	125 °C	Female Screwlock (4-40) Mating Side	Receptacle Female Sockets	Solder	Liquid Crystal Polymer (LCP)	Gold	100	Shielded	3 A	Copper Alloy	Aluminum Yellow Chromate Plated Cadmium	D-Type Micro-D	Panel Mount Right Angle Through Hole
ITT Cannon, LLC MDM-15PSM7	2	Signal			-55 °C	125 °C	Female Screwlock (2-56) Mating Side	Male Pins Plug		Liquid Crystal Polymer (LCP)	Gold	15	Shielded	3 A	Copper Alloy	Aluminum Yellow Chromate Plated Cadmium	D-Type Micro-D		0.043	0.05

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 205.52
		10	$ 174.71
		25	$ 163.79
		50	$ 160.06

Description

General part information

MDM-1 Series

15 Position D-Type, Micro-D Plug, Male Pins Connector

Documents

Technical documentation and resources

Microminiature Catalog

Datasheet
