LB15CGG01-6G-JB
ActiveNKK Switches

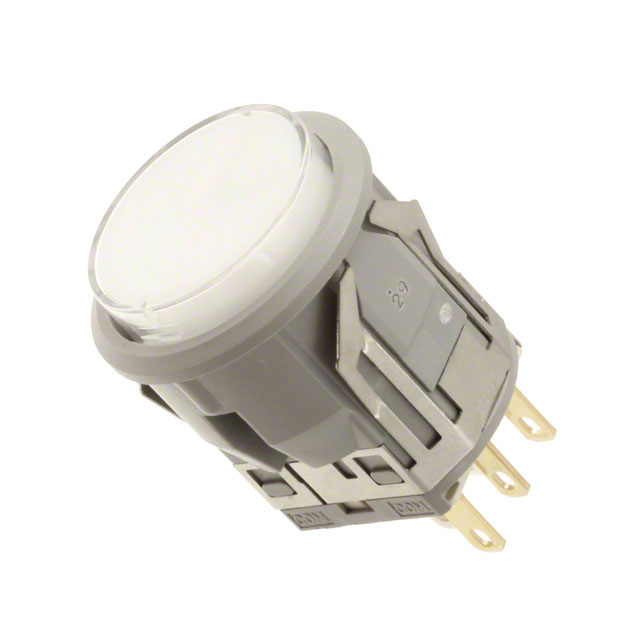

SWITCH PUSHBUTTON SPDT 0.4VA 28V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LB15CGG01-6G-JB
ActiveNKK Switches
SWITCH PUSHBUTTON SPDT 0.4VA 28V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LB15CGG01-6G-JB |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | SPDT |
| Color - Actuator/Cap | Clear |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 100000 Cycles |
| Illumination Type, Color | LED, Blue |
| Illumination Voltage (Nominal) | 3.6 VDC |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 22 mm |
| Switch Function | On-Mom |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
LB15CGG01 Series
| Part | Illumination Voltage (Nominal) | Mechanical Life | Voltage Rating - AC | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Electrical Life | Type | Actuator Marking | Illumination Type, Color | Color - Actuator/Cap | Panel Cutout Dimensions [diameter] | Mounting Type | Actuator Type | Voltage Rating - DC | Current Rating (Amps) | Termination Style | Termination Style | Termination Style | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | 2.1 VDC | 1000000 Cycles | 28 V | SPDT | 50 °C | -25 °C | 100000 Cycles | Illuminated Standard | No Marking | Green LED | Clear | 22 mm | Panel Mount Snap-In | Button Round | 28 V | 0.4 VA | 0.11 in | Quick Connect Solder | 2.8 mm | On-Mom |
NKK Switches | 2 VDC 2.2 VDC | 1000000 Cycles | 28 V | SPDT | 50 °C | -25 °C | 100000 Cycles | Illuminated Standard | No Marking | Green/Red LED | Red | 22 mm | Panel Mount Snap-In | Button Round | 28 V | 0.4 VA | 0.11 in | Quick Connect Solder | 2.8 mm | On-Mom |
NKK Switches | 1.9 VDC | 1000000 Cycles | 28 V | SPDT | 50 °C | -25 °C | 100000 Cycles | Illuminated Standard | No Marking | LED Red | Clear (Red Filter/Diffuser) | 22 mm | Panel Mount Snap-In | Button Round | 28 V | 0.4 VA | 0.11 in | Quick Connect Solder | 2.8 mm | On-Mom |
NKK Switches | 3.6 VDC | 1000000 Cycles | 28 V | SPDT | 50 °C | -25 °C | 100000 Cycles | Illuminated Standard | No Marking | Blue LED | Clear | 22 mm | Panel Mount Snap-In | Button Round | 28 V | 0.4 VA | 0.11 in | Quick Connect Solder | 2.8 mm | On-Mom |
NKK Switches | 28 VAC/DC | 1000000 Cycles | 28 V | SPDT | 50 °C | -25 °C | 100000 Cycles | Illuminated Standard | No Marking | Blue Incandescent | Blue | 22 mm | Panel Mount Snap-In | Button Round | 28 V | 0.4 VA | 0.11 in | Quick Connect Solder | 2.8 mm | On-Mom |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
LB15CGG01 Series
Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Snap-In
