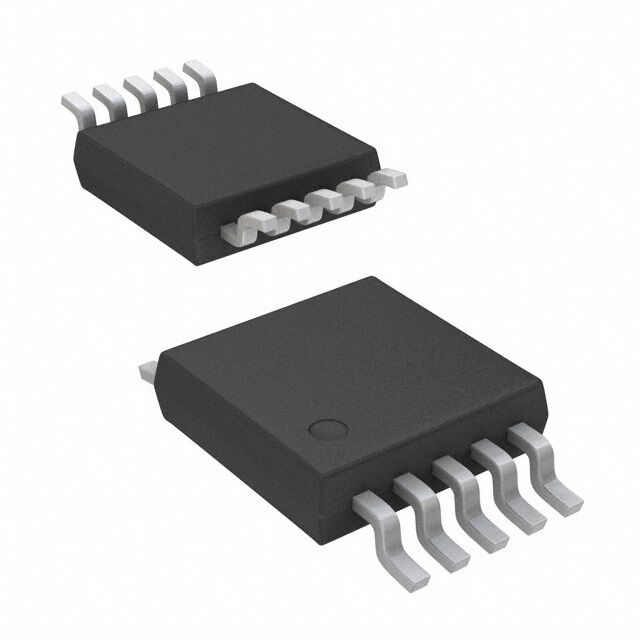

DG2519EDQ-T1-GE3

Active

Vishay General Semiconductor - Diodes Division

ANALOG SWITCH DUAL SPDT 10-PIN MSOP T/R

Search across all available documentation for this part.

Active

Vishay General Semiconductor - Diodes Division

ANALOG SWITCH DUAL SPDT 10-PIN MSOP T/R

Technical Specifications

Parameters and characteristics for this part

Specification	DG2519EDQ-T1-GE3

-3db Bandwidth	217 MHz
Channel-to-Channel Matching (ΔRon)	500 mOhm
Charge Injection	14 pC
Crosstalk	-61 dB
Mounting Type	Surface Mount
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max) [Max]	4 Ohm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	10-MSOP, 10-TFSOP
Package / Case [x]	3 mm
Package / Case [x]	0.118 in
Supplier Device Package	10-MSOP
Switch Circuit	SPDT
Switch Time (Ton, Toff) (Max) [custom]	33 ns
Switch Time (Ton, Toff) (Max) [custom]	40 ns
Voltage - Supply, Single (V+) [Max]	5.5 V
Voltage - Supply, Single (V+) [Min]	1.8 V

Part	On-State Resistance (Max) [Max]	Mounting Type	Switch Circuit	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Channel-to-Channel Matching (ΔRon)	-3db Bandwidth	Crosstalk	Supplier Device Package	Number of Circuits	Charge Injection	Multiplexer/Demultiplexer Circuit	Package / Case	Package / Case [x]	Package / Case [x]
Vishay General Semiconductor - Diodes Division DG2519EDQ-T1-GE3	4 Ohm	Surface Mount	SPDT	33 ns	40 ns	85 °C	-40 °C	1.8 V	5.5 V	500 mOhm	217 MHz	-61 dB	10-MSOP	2	14 pC	2:1	10-MSOP 10-TFSOP	3 mm	0.118 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Circuit IC Switch 2:1 4Ohm 10-MSOP

Technical documentation and resources

No documents available
