M80-8090205

Active

Harwin Inc.

CONNECTOR, PLUG, 2POS, 1ROW, CRIMP ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

CONNECTOR, PLUG, 2POS, 1ROW, CRIMP ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Wire Type	Pitch [x]	Pitch [x]	Connector Type	Fastening Type	Number of Rows	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Mounting Type	Number of Positions	Wire Gauge	Cable Termination
Harwin Inc. M80-8090205	Discrete	0.079 in	2 mm	Plug	Latch Holder	1	Male Pin	10 Áin	0.25 Ám	Gold	Free Hanging (In-Line)	2	22 AWG	Crimp
Harwin Inc. M80-8090605	Discrete	0.079 in	2 mm	Plug	Latch Holder	1	Male Pin	10 Áin	0.25 Ám	Gold	Free Hanging (In-Line)	6	22 AWG	Crimp
Harwin Inc. M80-8090305	Discrete	0.079 in	2 mm	Plug	Latch Holder	1	Male Pin	10 Áin	0.25 Ám	Gold	Free Hanging (In-Line)		22 AWG	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

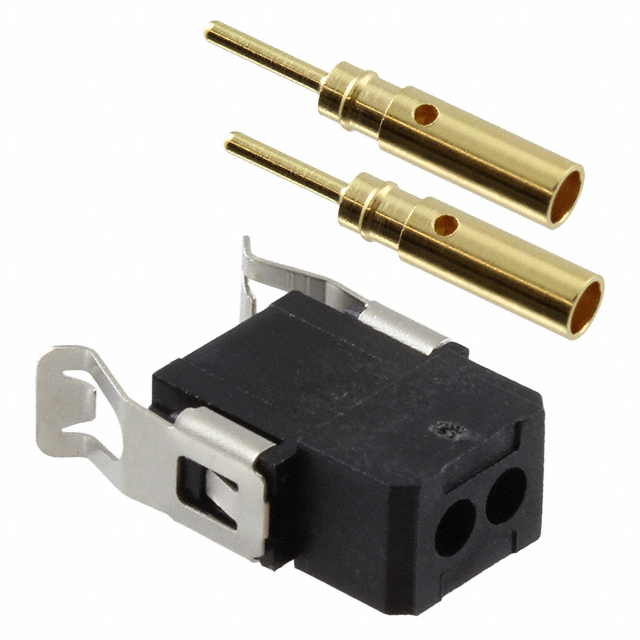

2 Position Rectangular Plug Connector Crimp Gold 22 AWG
