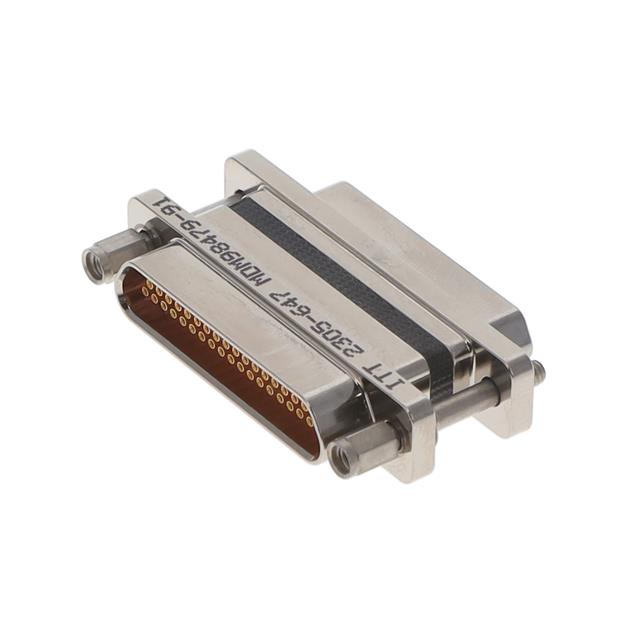

MDM98479-91

Active

ITT Cannon, LLC

CONN/SAVER SZ 37 W/HDW A174

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MDM98479-91

Active

ITT Cannon, LLC

CONN/SAVER SZ 37 W/HDW A174

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MDM98479-91

Connector Style	Connector Saver
Contact Finish	Gold
Convert From (Adapter End)	D-Sub, 37 Pin Female
Convert To (Adapter End)	D-Sub, 37 Pin Male
Mounting Type	Free Hanging (In-Line)
Number of Rows	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Aluminum Alloy, Electroless
Shielding	Shielded

MDM98 Series

Part	Number of Rows	Convert From (Adapter End)	Shielding	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Current Rating (Amps)	Mounting Type	Shell Material, Finish	Convert To (Adapter End)	Convert To (Adapter End)	Includes
ITT Cannon, LLC MDM98479-90	2	D-Sub 31 Pin Male	Shielded	Connector Saver	-55 °C	150 °C	Gold	3 A	Free Hanging (In-Line)	Aluminum Alloy Electroless Nickel Plated
ITT Cannon, LLC MDM98479-86	2	D-Sub 9 Pin Female	Shielded	Connector Saver	-55 °C	150 °C	Gold		Free Hanging (In-Line)	Aluminum Alloy Electroless Nickel Plated	9 Pin Male D-Sub
ITT Cannon, LLC MDM98479-88	2	D-Sub 21 Pin Male	Shielded	Connector Saver	-55 °C	150 °C	Gold	3 A	Free Hanging (In-Line)	Aluminum Alloy Electroless Nickel Plated	D-Sub 21 Pin Female
ITT Cannon, LLC MDM98479-78	2	D-Sub 9 Pin Female	Shielded	Connector Saver	-55 °C	150 °C	Gold		Free Hanging (In-Line)	Aluminum Alloy Cadmium Plated	9 Pin Male D-Sub
ITT Cannon, LLC MDM98479-17		D-Sub 100 Pin Male	Shielded	Connector Saver	-55 °C	150 °C	Gold	3 A	Free Hanging (In-Line)	Aluminum Alloy Electroless Nickel Plated	D-Sub 100 Pin Female
ITT Cannon, LLC MDM98479-16	2	D-Sub 51 Pin Male		Connector Saver			Gold		Free Hanging (In-Line)		D-Sub Female	51 Pin
ITT Cannon, LLC MDM98479-91	2	D-Sub 37 Pin Female	Shielded	Connector Saver	-55 °C	150 °C	Gold		Free Hanging (In-Line)	Aluminum Alloy Electroless Nickel Plated	D-Sub 37 Pin Male
ITT Cannon, LLC MDM98479-89	2	D-Sub 25 Pin Male		Connector Saver			Gold		Free Hanging (In-Line)		D-Sub 25 Pin Female		1 Connector 2 Jack Screws
ITT Cannon, LLC MDM98479-92	3	D-Sub 51 Pin Male	Shielded	Connector Saver	-55 °C	150 °C	Gold	3 A	Free Hanging (In-Line)	Aluminum Alloy Electroless Nickel Plated	D-Sub Female	51 Pin
ITT Cannon, LLC MDM98479-81	2	D-Sub 25 Pin Male	Shielded	Connector Saver	-55 °C	150 °C	Gold	3 A	Free Hanging (In-Line)	Aluminum Alloy Cadmium Plated	D-Sub 25 Pin Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 696.93
		10	$ 551.37
Newark	Each	10	$ 566.82
		25	$ 546.72
		50	$ 514.56

Description

General part information

MDM98 Series

Adapter Connector D-Sub, 37 Pin Male To D-Sub, 37 Pin Female Free Hanging (In-Line)
