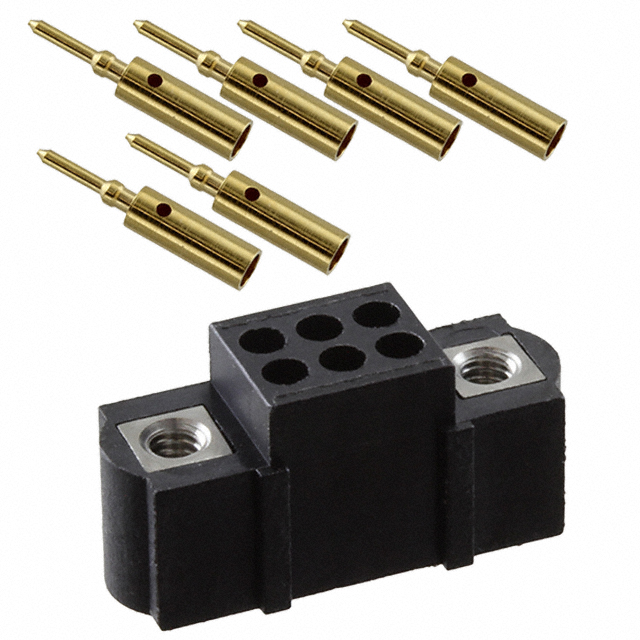

M80-5600605

Active

Harwin Inc.

CONNECTOR, PLUG, 6POS, 2ROW, CRIMP ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

CONNECTOR, PLUG, 6POS, 2ROW, CRIMP ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Cable Termination	Color	Number of Positions	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Contact Finish	Mounting Type	Wire Gauge	Pitch [x]	Pitch [x]	Number of Rows	Row Spacing	Row Spacing	Wire Type
Harwin Inc. M80-5604205	Crimp	Black	42	Header	10 Áin	0.25 Ám	Male Pin	Gold	Free Hanging (In-Line)	22 AWG	0.079 in	2 mm	2	2 mm	0.079 in	Discrete
Harwin Inc. M80-5601805	Crimp	Black	18	Header	10 Áin	0.25 Ám	Male Pin	Gold	Free Hanging (In-Line)	22 AWG	0.079 in	2 mm	2	2 mm	0.079 in	Discrete
Harwin Inc. M80-5602405	Crimp	Black	24	Header	10 Áin	0.25 Ám	Male Pin	Gold	Free Hanging (In-Line)	22 AWG	0.079 in	2 mm	2	2 mm	0.079 in	Discrete
Harwin Inc. M80-5601005	Crimp	Black	10	Header	10 Áin	0.25 Ám	Male Pin	Gold	Free Hanging (In-Line)	22 AWG	0.079 in	2 mm	2	2 mm	0.079 in	Discrete
Harwin Inc. M80-5600605	Crimp	Black	6	Header	10 Áin	0.25 Ám	Male Pin	Gold	Free Hanging (In-Line)	22 AWG	0.079 in	2 mm	2	2 mm	0.079 in	Discrete
Harwin Inc. M80-5602605	Crimp	Black	26	Header	10 Áin	0.25 Ám	Male Pin	Gold	Free Hanging (In-Line)	22 AWG	0.079 in	2 mm	2	2 mm	0.079 in	Discrete

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Rectangular Header Connector Crimp Gold 22 AWG
