SLPE14-410P8

Active

BANNER ENGINEERING

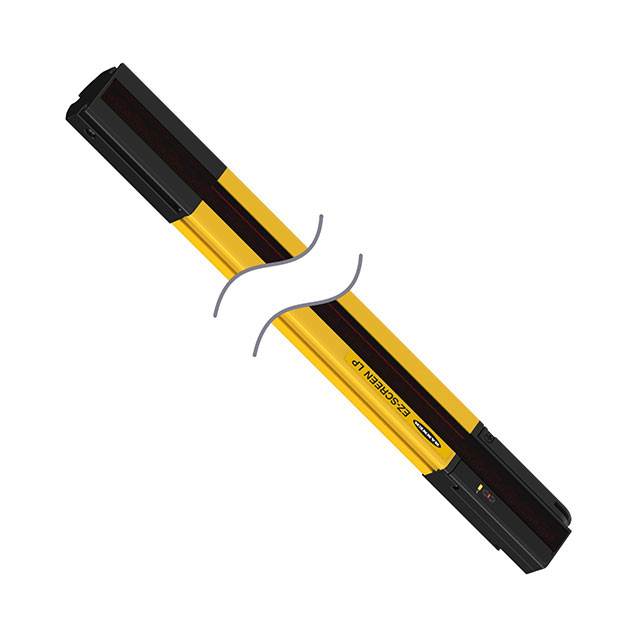

SLPE14-410P8 EZ-SCREEN LOW PROFILE EMITTER

Search across all available documentation for this part.

Active

BANNER ENGINEERING

SLPE14-410P8 EZ-SCREEN LOW PROFILE EMITTER

Technical Specifications

Parameters and characteristics for this part

Specification	SLPE14-410P8

Detection Capability	14 mm
Ingress Protection	IP65 - Dust Tight, Water Resistant
Number of Beams	41
Operating Range [Max]	7 m
Operating Range [Min]	0.1 m
Protection	Finger
Protective Height [z]	410 mm
Voltage - Supply	24 VDC

Part	Protective Height [z]	Ingress Protection	Protection	Voltage - Supply	Detection Capability	Number of Beams	Operating Range [Max]	Operating Range [Min]
BANNER ENGINEERING SLPE14-410P8	410 mm	IP65 - Dust Tight Water Resistant	Finger	24 VDC	14 mm	41	7 m	0.1 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 916.01
Newark	Each	1	$ 939.00

General part information

Light Curtain 14mm Finger

Technical documentation and resources
