P117G-25H-C52TB-DIS

Active

Whitman Controls, LLC

PRESSURE SWITCH 9.7-250 PSIG

Search across all available documentation for this part.

Active

Whitman Controls, LLC

PRESSURE SWITCH 9.7-250 PSIG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 139.14

General part information

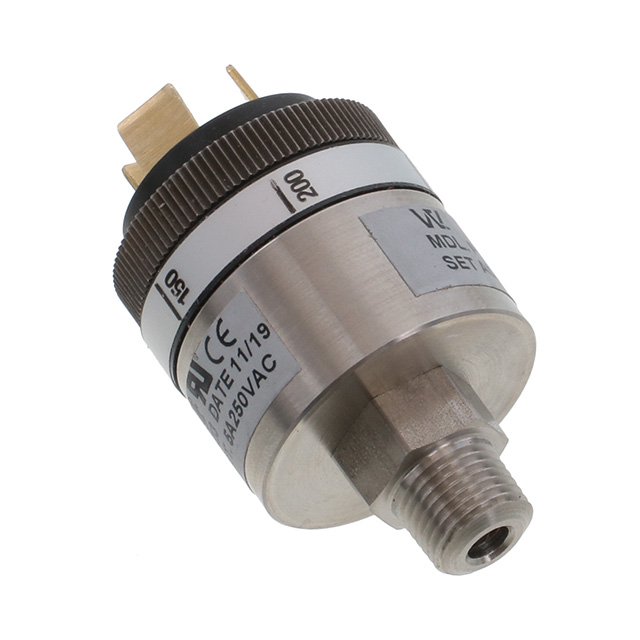

PRESSURE SWITCH 9.7-250 PSIG

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	P117G-25H-C52TB-DIS	P117G Series

Accuracy	5 PSI	1 - 5 PSI
Accuracy	34.47 kPa	6.89 - 34.47 kPa
Accuracy	-	68.95 kPa
Maximum Pressure	-	344.74 kPa
Maximum Pressure	-	50 PSI
Maximum Pressure [Max]	250 PSI	250 - 500 PSI
Maximum Pressure [Max]	1723.69 kPa	1723.69 - 3447.38 kPa
Operating Pressure [Max]	250 PSI	250 - 500 PSI
Operating Pressure [Max]	1723.69 kPa	1723.69 - 3447.38 kPa
Operating Pressure [Min]	9.7 PSI	9.7 - 20 PSI
Operating Pressure [Min]	66.88 kPa	66.88 - 137.9 kPa
Operating Temperature [Max]	107 °C	107 °C
Operating Temperature [Min]	-54 °C	-54 °C
Output Type	SPDT	SPDT
Package / Case	Cylinder, Threaded	Cylinder, Threaded
Port Size	0.125 "	0.125 "
Port Size	3.18 mm	3.18 mm
Port Size	Male	Male
Port Style	Threaded	Threaded
Pressure Type	Switch	Switch
Termination Style	Quick Connect - 0.250" (6.3mm)	Screw Terminal, Wire Leads, Quick Connect - 0.250" (6.3mm)

PRESSURE SWITCH 3-50 PSIG

Part	Port Size	Port Size	Port Size	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Accuracy	Accuracy	Output Type	Pressure Type	Maximum Pressure	Maximum Pressure	Termination Style	Port Style	Accuracy	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Min]
Whitman Controls, LLC P117G-5H-C52TS-DIS	0.125 "	3.18 mm	Male	-54 °C	107 °C	Cylinder, Threaded	6.89 kPa	1 PSI	SPDT	Switch	344.74 kPa	50 PSI	Screw Terminal	Threaded
Whitman Controls, LLC P117G-50H-C52L-DIS	0.125 "	3.18 mm	Male	-54 °C	107 °C	Cylinder, Threaded	10 PSI		SPDT	Switch			Wire Leads	Threaded	68.95 kPa	500 PSI	3447.38 kPa	500 PSI	20 PSI	3447.38 kPa	137.9 kPa
Whitman Controls, LLC P117G-25H-C12TS-DIS	0.125 "	3.18 mm	Male	-54 °C	107 °C	Cylinder, Threaded	34.47 kPa	5 PSI	SPDT	Switch			Screw Terminal	Threaded		250 PSI	1723.69 kPa	250 PSI	9.7 PSI	1723.69 kPa	66.88 kPa
Whitman Controls, LLC P117G-25H-C52L-DIS	0.125 "	3.18 mm	Male	-54 °C	107 °C	Cylinder, Threaded	34.47 kPa	5 PSI	SPDT	Switch			Wire Leads	Threaded		250 PSI	1723.69 kPa	250 PSI	9.7 PSI	1723.69 kPa	66.88 kPa
Whitman Controls, LLC P117G-25H-C52TB-DIS	0.125 "	3.18 mm	Male	-54 °C	107 °C	Cylinder, Threaded	34.47 kPa	5 PSI	SPDT	Switch			Quick Connect - 0.250" (6.3mm)	Threaded		250 PSI	1723.69 kPa	250 PSI	9.7 PSI	1723.69 kPa	66.88 kPa
Whitman Controls, LLC P117G-5H-C52TB-DIS	0.125 "	3.18 mm	Male	-54 °C	107 °C	Cylinder, Threaded	6.89 kPa	1 PSI	SPDT	Switch	344.74 kPa	50 PSI	Quick Connect - 0.250" (6.3mm)	Threaded
