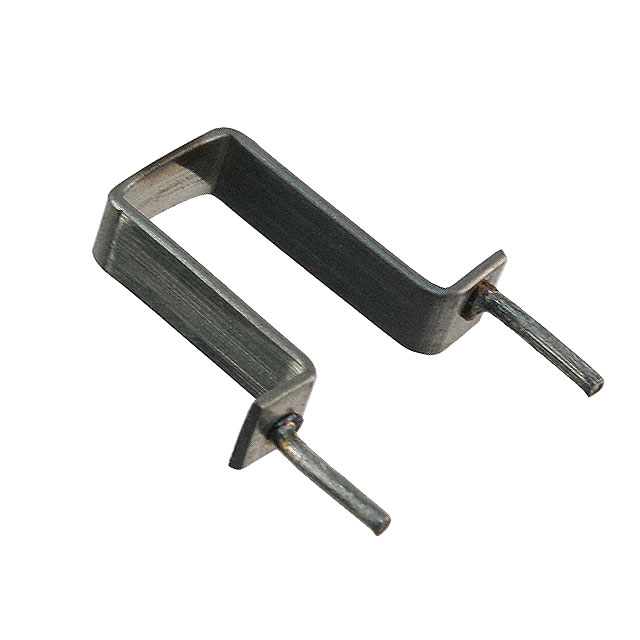

PWR4413BR025J

Obsolete

Bourns Inc.

RES 0.025 OHM 5% 1W RADIAL

Search across all available documentation for this part.

Obsolete

Bourns Inc.

RES 0.025 OHM 5% 1W RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	PWR4413BR025J

Composition	Metal Element
Features	Current Sense, Pulse Withstanding
Number of Terminations	2
Operating Temperature [Max]	325 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Power (Watts)	1 W
Resistance	25 mOhms
Size / Dimension [x]	0.45 in
Size / Dimension [x]	0.45 in
Size / Dimension [y]	0.157 in
Size / Dimension [y]	4 mm
Tolerance	5 %

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Number of Terminations	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Features	Composition	Supplier Device Package	Package / Case	Resistance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Bourns Inc. PWR4413CR040J	0.157 in	15.24 mm	4 mm	0.6 in	2	0.63 in	16 mm	5 %	3 W	325 °C	-55 °C	Current Sense Pulse Withstanding	Metal Element	Radial Lead	Radial
Bourns Inc. PWR4413CR100F	0.157 in	15.24 mm	4 mm	0.6 in	2	0.63 in	16 mm	1 %	3 W	325 °C	-55 °C	Current Sense Pulse Withstanding	Metal Element	Radial Lead	Radial	0.1 Ohms
Bourns Inc. PWR4413DR020F	0.157 in	20.32 mm	4 mm	0.8 "	2			1 %	5 W	325 °C	-55 °C	Current Sense Pulse Withstanding	Metal Element	Radial Lead	Radial	0.02 Ohms	26 mm	1.024 in
Bourns Inc. PWR4413CR020J	0.157 in	15.24 mm	4 mm	0.6 in	2	0.63 in	16 mm	5 %	3 W	325 °C	-55 °C	Current Sense Pulse Withstanding	Metal Element		Radial	0.02 Ohms
Bourns Inc. PWR4413BR025J	0.157 in	0.45 in	4 mm	0.45 in	2			5 %	1 W	325 °C	-55 °C	Current Sense Pulse Withstanding	Metal Element		Radial	25 mOhms
Bourns Inc. PWR4413DR020J	0.157 in	20.32 mm	4 mm	0.8 "	2			5 %	5 W	325 °C	-55 °C	Current Sense Pulse Withstanding	Metal Element	Radial Lead	Radial	0.02 Ohms	26 mm	1.024 in
Bourns Inc. PWR4413DR040F	0.157 in	20.32 mm	4 mm	0.8 "	2			1 %	5 W	325 °C	-55 °C	Current Sense Pulse Withstanding	Metal Element	Radial Lead	Radial		26 mm	1.024 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

25 mOhms ±5% 1W Through Hole Resistor Radial Current Sense, Pulse Withstanding Metal Element
