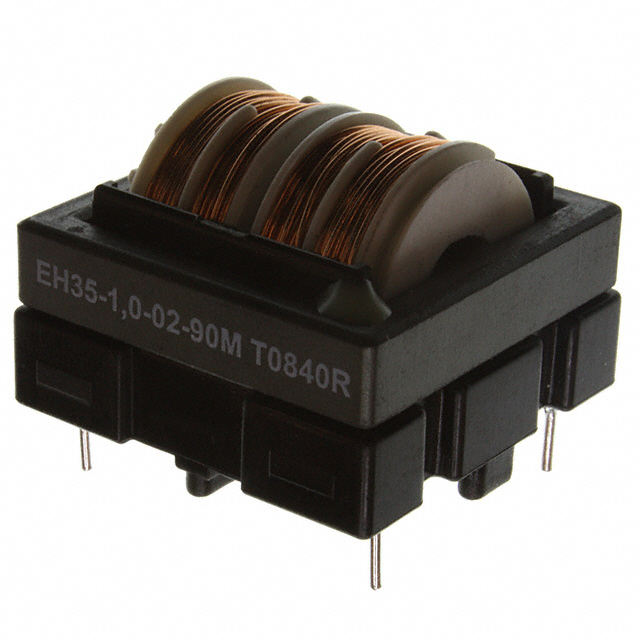

EH35-1.0-02-90M

Active

Schaffner EMC Inc.

CMC 90MH 1A 2LN TH

Search across all available documentation for this part.

Active

Schaffner EMC Inc.

CMC 90MH 1A 2LN TH

Technical Specifications

Parameters and characteristics for this part

Specification	EH35-1.0-02-90M

Current Rating (Max) [Max]	1 A
DC Resistance (DCR) (Max)	628 mOhm
Filter Type	Power Line
Height (Max) [Max]	1.13 in
Height (Max) [Max]	28.7 mm
Inductance @ Frequency	90 mH
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [custom]	100 °C, -25 °C
Package / Case	Horizontal
Package / Case	4 Lead
Size / Dimension [x]	36 mm
Size / Dimension [x]	1.417 in
Size / Dimension [y]	1.417 in
Size / Dimension [y]	36 mm
Voltage Rating - AC	250 V

CMC 90MH 1A 2LN TH

Part	DC Resistance (DCR) (Max)	Current Rating (Max) [Max]	Operating Temperature [custom]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height (Max) [Max]	Height (Max) [Max]	Mounting Type	Inductance @ Frequency	Filter Type	Number of Lines	Package / Case	Package / Case	Voltage Rating - AC
Schaffner EMC Inc. EH35-1.0-02-90M	628 mOhm	1 A	-25 °C, 100 °C	36 mm	1.417 in	36 mm	1.417 in	1.13 in	28.7 mm	Through Hole	90 mH	Power Line	2	Horizontal	4 Lead	250 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

90 mH @ 400 Hz 2 Line Common Mode Choke Through Hole 1A DCR 628mOhm (Typ)
