NCP1012APL100R2G

Obsolete

Sanyo

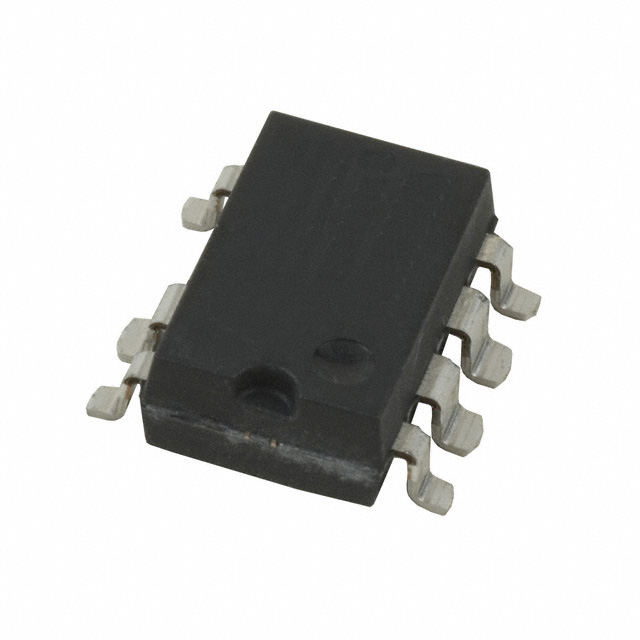

IC OFFLINE SWITCH FLYBACK 7DIPGW

Search across all available documentation for this part.

Obsolete

Sanyo

IC OFFLINE SWITCH FLYBACK 7DIPGW

Technical Specifications

Parameters and characteristics for this part

Specification	NCP1012APL100R2G

Control Features	Soft Start, Frequency Control
Duty Cycle	67 %
Fault Protection	Over Voltage, Over Temperature, Over Load
Frequency - Switching	100 kHz
Internal Switch(s)	True
Mounting Type	Surface Mount
Operating Temperature	150 °C
Output Isolation	Isolated
Package / Case	8-SMD (7 Leads), Gull Wing
Power (Watts)	19 W
Supplier Device Package	7-PDIP, Gullwing
Topology	Flyback
Voltage - Breakdown	700 V
Voltage - Supply (Vcc/Vdd) [Max]	10 V
Voltage - Supply (Vcc/Vdd) [Min]	8.5 V

IC OFFLINE SWITCH FLYBACK 7DIPGW

Part	Voltage - Breakdown	Internal Switch(s)	Output Isolation	Mounting Type	Fault Protection	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Supplier Device Package	Topology	Package / Case	Duty Cycle	Operating Temperature	Control Features	Frequency - Switching	Power (Watts)
Sanyo NCP1012APL100R2G	700 V		Isolated	Surface Mount	Over Load, Over Temperature, Over Voltage	10 V	8.5 V	7-PDIP, Gullwing	Flyback	8-SMD (7 Leads), Gull Wing	67 %	150 °C	Frequency Control, Soft Start	100 kHz	19 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	398	$ 0.76

General part information

Converter Offline Flyback Topology 100kHz 7-PDIP, Gullwing

Technical documentation and resources

No documents available
