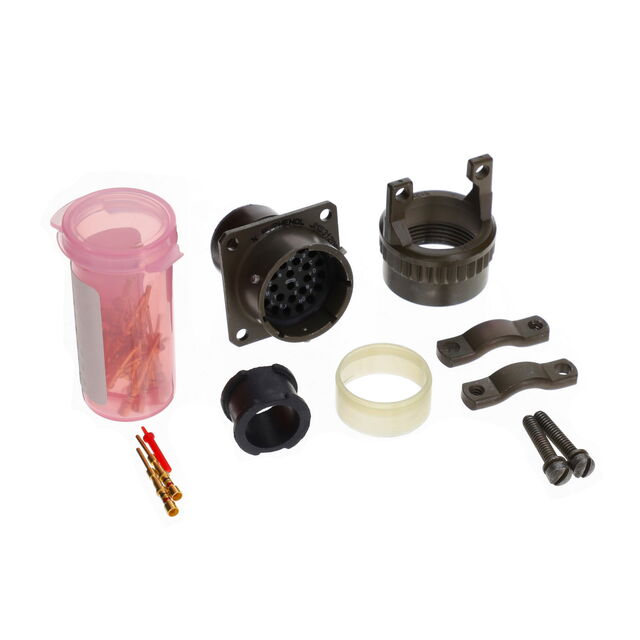

MS3120F16-26P

Active

Amphenol Aerospace Operations

MIL-26482 MS/PT/CMB RECEPT

MS3120F16-26P

Active

Amphenol Aerospace Operations

MIL-26482 MS/PT/CMB RECEPT

Description Specifications Series Pricing CAD Documents

Description

General part information

MS3120F16 Series

26 Position Circular Connector Receptacle, Male Pins Crimp

Technical Specifications

Parameters and characteristics for this part

Specification	MS3120F16-26P

Applications	Industrial, Instrumentation, Military, Mass Transit, Aerospace
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating	7.5 A
Fastening Type	Bayonet Lock
Features	Strain Relief
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Positions	26
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	N (Normal)
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate, Cadmium
Shell Material	Aluminum
Shell Size - Insert (Maximum)	26
Shell Size - Insert (Minimum)	16 S
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

MS3120F16 Series

Part	Primary Material	Grade	Mounting Type	Insert Material	Shielding	Shell Finish	Number of Positions	Mounting Feature	Contact Material	Contact Finish - Mating	Applications	Ingress Protection	Color	Qualification	Features	Connector Type	Orientation	Operating Temperature (Max)	Operating Temperature (Min)	Termination	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Shell Material	Fastening Type	Backshell Material	Plating	Current Rating	Voltage Rating	Shell Size - Insert Length	Shell Size - Insert Width
Amphenol Aerospace Operations MS3120F16-8P(LC)
Amphenol Aerospace Operations MS3120F16-26SW	Metal	Military	Panel Mount	Neoprene	Unshielded	Cadmium Olive Drab Chromate	26	Flange	Copper Alloy	Gold	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Environment Resistant	Olive Drab	MIL-DTL-26482 Series I	Backshell Cable Clamp	Female Sockets Receptacle	W	125 °C	-55 °C	Crimp	16 S	26	Aluminum	Bayonet Lock	Aluminum	Olive Drab Chromate over Cadmium
Amphenol Aerospace Operations MS3120F16-26S(LC)
Amphenol Aerospace Operations MS3120F16-23S	Metal	Military	Panel Mount	Neoprene	Unshielded	Cadmium Olive Drab Chromate	23	Flange	Copper Alloy	Gold	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Environment Resistant	Olive Drab	MIL-DTL-26482 Series I	Backshell Cable Clamp	Female Sockets Receptacle	N (Normal)	125 °C	-55 °C	Crimp	16 S	23	Aluminum	Bayonet Lock	Aluminum	Olive Drab Chromate over Cadmium
Amphenol Aerospace Operations MS3120F16-26P	Metal	Military	Panel Mount		Unshielded	Cadmium Olive Drab Chromate	26	Flange		Gold		Environment Resistant	Olive Drab	MIL-DTL-26482 Series I	Strain Relief	Male Pins Receptacle	N (Normal)	125 °C	-55 °C	Crimp	16 S	26	Aluminum	Bayonet Lock			7.5 A	600 V
Amphenol Aerospace Operations MS3120F16-26P	Metal	Military	Panel Mount	Neoprene	Unshielded	Cadmium Olive Drab Chromate	26	Flange	Copper Alloy	Gold	Aerospace Industrial Instrumentation Mass Transit Military	Environment Resistant	Olive Drab	MIL-DTL-26482 Series I	Strain Relief	Male Pins Receptacle	N (Normal)	125 °C	-55 °C	Crimp	16 S	26	Aluminum	Bayonet Lock			7.5 A	600 V
Amphenol Aerospace Operations MS3120F16-8P	Metal	Military	Panel Mount	Neoprene	Unshielded	Cadmium Olive Drab Chromate	8	Flange	Copper Alloy	Gold	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Environment Resistant	Olive Drab	MIL-DTL-26482 Series I	Backshell Cable Clamp	Male Pins Receptacle	N (Normal)	125 °C	-55 °C	Crimp			Aluminum	Bayonet Lock	Aluminum	Olive Drab Chromate over Cadmium			16 mm	8 mm
Amphenol Aerospace Operations MS3120F16-26S	Metal	Military	Panel Mount	Neoprene	Unshielded	Cadmium Olive Drab Chromate	26	Flange	Copper Alloy	Gold	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Environment Resistant	Olive Drab	MIL-DTL-26482 Series I	Backshell Cable Clamp	Female Sockets Receptacle	N (Normal)	125 °C	-55 °C	Crimp	16 S	26	Aluminum	Bayonet Lock	Aluminum	Olive Drab Chromate over Cadmium

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

MS3120F16-26P | Datasheet

10-101949-010
