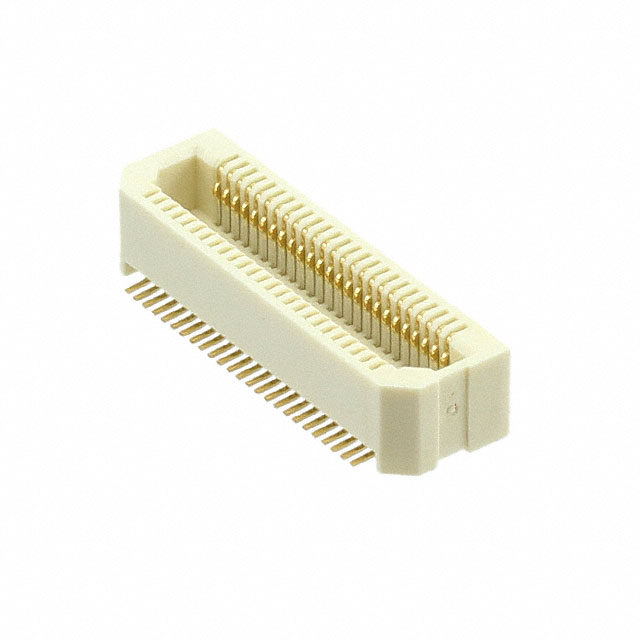

AXK5S50247YG
ActivePanasonic Electric Works
CONN SOCKET 50POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
AXK5S50247YG
ActivePanasonic Electric Works
CONN SOCKET 50POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AXK5S50247YG |
|---|---|
| Connector Type | Socket, Center Strip Contacts |
| Contact Finish | Gold |
| Height Above Board | 3.55 mm |
| Height Above Board | 0.14 in |
| Mated Stacking Heights | 6.5 mm, 4.5 mm, 5.5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.56 | |
| 10 | $ 2.23 | |||
| 25 | $ 2.14 | |||
| 50 | $ 2.09 | |||
| 100 | $ 1.99 | |||
| 250 | $ 1.80 | |||
| 500 | $ 1.66 | |||
| Digi-Reel® | 1 | $ 2.56 | ||
| 10 | $ 2.23 | |||
| 25 | $ 2.14 | |||
| 50 | $ 2.09 | |||
| 100 | $ 1.99 | |||
| 250 | $ 1.80 | |||
| 500 | $ 1.66 | |||
| Tape & Reel (TR) | 1500 | $ 1.38 | ||
| 3000 | $ 1.33 | |||
| 7500 | $ 1.26 | |||
Description
General part information
AXK5S50247 Series
50 Position Connector Socket, Center Strip Contacts Surface Mount Gold
