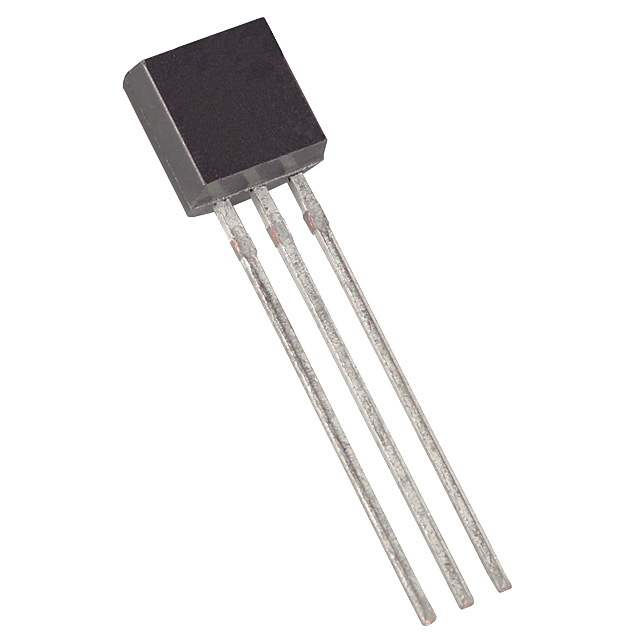

DS1233A-10
ActiveAnalog Devices Inc./Maxim Integrated
IC SUPERVISOR 1 CHANNEL TO92-3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DS1233A-10
ActiveAnalog Devices Inc./Maxim Integrated
IC SUPERVISOR 1 CHANNEL TO92-3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DS1233A-10 | DS1233A Series |
|---|---|---|
| Mounting Type | Through Hole | Through Hole, Surface Mount |
| Number of Voltages Monitored | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output | Open Drain or Open Collector | Open Drain or Open Collector |
| Package / Case | TO-226-3, TO-92-3 | TO-226-3, TO-92-3, TO-261AA, TO-261-4 |
| Reset | Active Low | Active Low |
| Reset Timeout | 250 ms | 250 ms |
| Supplier Device Package | TO-92-3 | TO-92-3, SOT-223-3 |
| Type | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset |
| Voltage - Threshold | 2.88 V | 2.72 - 2.88 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
DS1233A Series
IC SUPERVISOR 1 CHANNEL TO92-3
| Part | Number of Voltages Monitored | Supplier Device Package | Reset Timeout | Voltage - Threshold | Reset | Output | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated DS1233A-10 | 1 | TO-92-3 | 250 ms | 2.88 V | Active Low | Open Drain or Open Collector | TO-226-3, TO-92-3 | 85 °C | -40 °C | Simple Reset/Power-On Reset | Through Hole |
Analog Devices Inc./Maxim Integrated DS1233AZ-15 | 1 | SOT-223-3 | 250 ms | 2.72 V | Active Low | Open Drain or Open Collector | TO-261-4, TO-261AA | 85 °C | -40 °C | Simple Reset/Power-On Reset | Surface Mount |
Analog Devices Inc./Maxim Integrated DS1233AZ-15+ | 1 | SOT-223-3 | 250 ms | 2.72 V | Active Low | Open Drain or Open Collector | TO-261-4, TO-261AA | 85 °C | -40 °C | Simple Reset/Power-On Reset | Surface Mount |
Analog Devices Inc./Maxim Integrated DS1233A-10/T&R | 1 | TO-92-3 | 250 ms | 2.88 V | Active Low | Open Drain or Open Collector | TO-226-3, TO-92-3 | 85 °C | -40 °C | Simple Reset/Power-On Reset | Through Hole |
Analog Devices Inc./Maxim Integrated DS1233AZ-15+T&R | 1 | SOT-223-3 | 250 ms | 2.72 V | Active Low | Open Drain or Open Collector | TO-261-4, TO-261AA | 85 °C | -40 °C | Simple Reset/Power-On Reset | Surface Mount |
Analog Devices Inc./Maxim Integrated DS1233AZ-15/T&R | 1 | SOT-223-3 | 250 ms | 2.72 V | Active Low | Open Drain or Open Collector | TO-261-4, TO-261AA | 85 °C | -40 °C | Simple Reset/Power-On Reset | Surface Mount |
Analog Devices Inc./Maxim Integrated DS1233AZ-10+T&R | 1 | SOT-223-3 | 250 ms | 2.88 V | Active Low | Open Drain or Open Collector | TO-261-4, TO-261AA | 85 °C | -40 °C | Simple Reset/Power-On Reset | Surface Mount |
Analog Devices Inc./Maxim Integrated DS1233A-10+ | 1 | TO-92-3 | 250 ms | 2.88 V | Active Low | Open Drain or Open Collector | TO-226-3, TO-92-3 | 85 °C | -40 °C | Simple Reset/Power-On Reset | Through Hole |
Analog Devices Inc./Maxim Integrated DS1233A-15/T&R | 1 | TO-92-3 | 250 ms | 2.72 V | Active Low | Open Drain or Open Collector | TO-226-3, TO-92-3 | 85 °C | -40 °C | Simple Reset/Power-On Reset | Through Hole |
Analog Devices Inc./Maxim Integrated DS1233AZ-10/T&R | 1 | SOT-223-3 | 250 ms | 2.88 V | Active Low | Open Drain or Open Collector | TO-261-4, TO-261AA | 85 °C | -40 °C | Simple Reset/Power-On Reset | Surface Mount |
Analog Devices Inc./Maxim Integrated DS1233A-15 | 1 | TO-92-3 | 250 ms | 2.72 V | Active Low | Open Drain or Open Collector | TO-226-3, TO-92-3 | 85 °C | -40 °C | Simple Reset/Power-On Reset | Through Hole |
Analog Devices Inc./Maxim Integrated DS1233AZ-10 | 1 | SOT-223-3 | 250 ms | 2.88 V | Active Low | Open Drain or Open Collector | TO-261-4, TO-261AA | 85 °C | -40 °C | Simple Reset/Power-On Reset | Surface Mount |
Analog Devices Inc./Maxim Integrated DS1233AZ-15/TR/C17 | 1 | SOT-223-3 | 250 ms | 2.72 V | Active Low | Open Drain or Open Collector | TO-261-4, TO-261AA | 85 °C | -40 °C | Simple Reset/Power-On Reset | Surface Mount |
Analog Devices Inc./Maxim Integrated DS1233AZ-10+ | 1 | SOT-223-3 | 250 ms | 2.88 V | Active Low | Open Drain or Open Collector | TO-261-4, TO-261AA | 85 °C | -40 °C | Simple Reset/Power-On Reset | Surface Mount |
Analog Devices Inc./Maxim Integrated DS1233A-15+ | 1 | TO-92-3 | 250 ms | 2.72 V | Active Low | Open Drain or Open Collector | TO-226-3, TO-92-3 | 85 °C | -40 °C | Simple Reset/Power-On Reset | Through Hole |
Description
General part information
DS1233A Series
Supervisor Open Drain or Open Collector 1 Channel TO-92-3
