11015-B

Active

Keystone Electronics

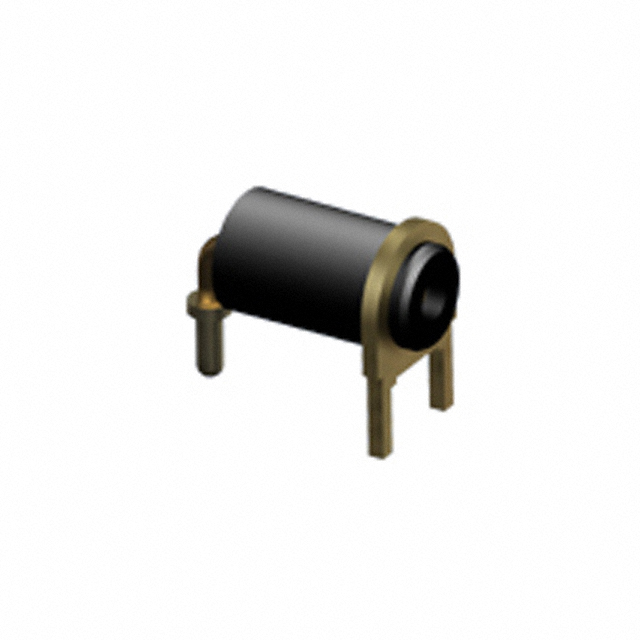

PC TEST POINT JACK BLACK

Search across all available documentation for this part.

Active

Keystone Electronics

PC TEST POINT JACK BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	11015-B

Color	Black
Height [z]	10.29 mm
Height [z]	0.405 in
Material - Body	Beryllium Copper
Material - Insulation	Polytetrafluoroethylene (PTFE)
Mounting Type	Through Hole, Right Angle
Plating	Gold
Size / Dimension [diameter]	5.54 mm
Size / Dimension [diameter]	0.218 in
Size / Dimension [x]	0.378 in
Size / Dimension [x]	9.6 mm
Type	PC Test Point Jack

PC TEST POINT JACK BLACK

Part	Mounting Type	Material - Body	Type	Color	Material - Insulation	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Height [z]	Height [z]	Plating
Keystone Electronics 11015-B	Through Hole, Right Angle	Beryllium Copper	PC Test Point Jack	Black	Polytetrafluoroethylene (PTFE)	5.54 mm	0.378 in	9.6 mm	0.218 in	10.29 mm	0.405 in	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Black PC Test Point Jack Beryllium Copper Gold Plating Through Hole, Right Angle Mounting Type
