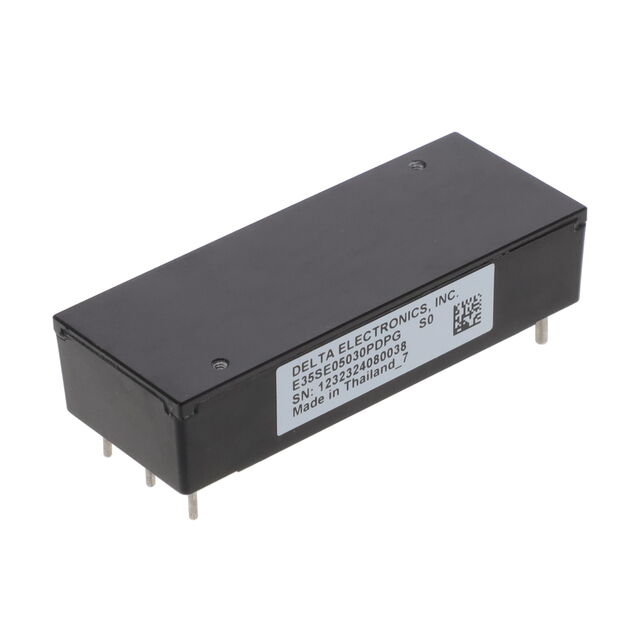

E35SE05030PDPG

Active

Delta Electronics

9-60VIN; 5VOUT, 150W, ENCAPSULAT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

E35SE05030PDPG

Active

Delta Electronics

9-60VIN; 5VOUT, 150W, ENCAPSULAT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	E35SE05030PDPG

Applications	Railway, ITE (Commercial)
Approval Agency	IEC, UL, EN, CSA
Control Features	Active High, Enable
Current - Output (Max) [Max]	30 A
Efficiency	92.2 %
Features	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Eighth Brick
Power (Watts)	150 W
Size / Dimension [x]	2.3 in
Size / Dimension [x]	58.4 mm
Size / Dimension [y]	22.8 mm
Size / Dimension [y]	0.9 "
Size / Dimension [z]	13.5 mm
Size / Dimension [z]	0.53 "
Standard Number	60950-1, 62368-1, 50155
Supplier Device Package	Eighth Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	60 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	4.242 kV
Voltage - Output 1	5 V

E35SE Series

Part	Voltage - Isolation	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Supplier Device Package	Features	Approval Agency	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Standard Number	Applications	Efficiency	Type	Voltage - Input (Max) [Max]	Package / Case	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Output 1	Power (Watts)
Delta Electronics E35SE48003PDPG	4.242 kV	3 A	13.5 mm	2.3 in	58.4 mm	22.8 mm	0.53 "	0.9 "	Eighth Brick	Adjustable Output Remote On/Off Remote Sense	CSA EN IEC UL	Through Hole	85 °C	-40 °C	Active High Enable	50155 60950-1 62368-1	ITE (Commercial) Railway	91.2 %	Isolated Module	60 V	Eighth Brick	1	9 V	48 V	144 W
Delta Electronics E35SE24006PDPG	4.242 kV	6 A	13.5 mm	2.3 in	58.4 mm	22.8 mm	0.53 "	0.9 "	Eighth Brick	Adjustable Output Remote On/Off Remote Sense	CSA EN IEC UL	Through Hole	85 °C	-40 °C	Active High Enable	50155 60950-1 62368-1	ITE (Commercial) Railway	92.2 %	Isolated Module	60 V	Eighth Brick	1	9 V	24 V	144 W
Delta Electronics E35SE05030PDPG	4.242 kV	30 A	13.5 mm	2.3 in	58.4 mm	22.8 mm	0.53 "	0.9 "	Eighth Brick	Adjustable Output Remote On/Off Remote Sense	CSA EN IEC UL	Through Hole	85 °C	-40 °C	Active High Enable	50155 60950-1 62368-1	ITE (Commercial) Railway	92.2 %	Isolated Module	60 V	Eighth Brick	1	9 V	5 V	150 W
Delta Electronics E35SE12013PDPG	4.242 kV	13 A	13.5 mm	2.3 in	58.4 mm	22.8 mm	0.53 "	0.9 "	Eighth Brick	Adjustable Output Remote On/Off Remote Sense	CSA EN IEC UL	Through Hole	85 °C	-40 °C	Active High Enable	50155 60950-1 62368-1	ITE (Commercial) Railway	91 %	Isolated Module	60 V	Eighth Brick	1	9 V	12 V	156 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 71.94

Description

General part information

E35SE Series

Isolated Module DC DC Converter 1 Output 5V 30A 9V - 60V Input
