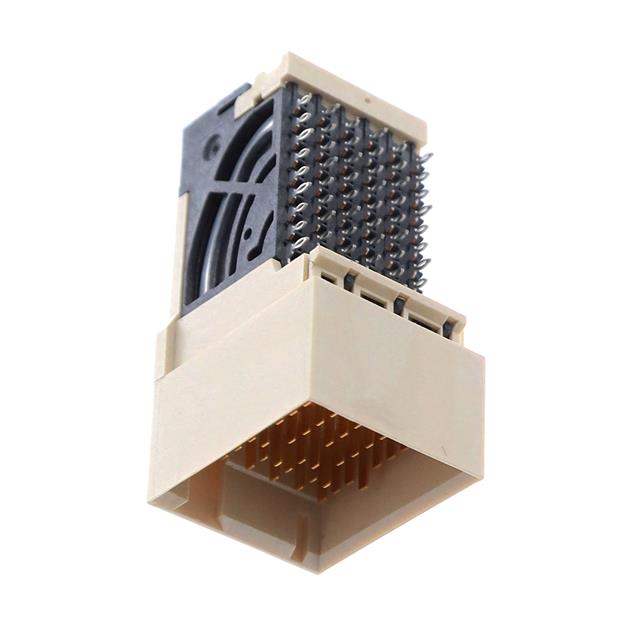

10124149-102LF

Active

Amphenol ICC (FCI)

CONN HDR HI SPEED 54POS EDGE MT

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HDR HI SPEED 54POS EDGE MT

Technical Specifications

Parameters and characteristics for this part

Specification	10124149-102LF

Color	Black
Connector Style	High Speed
Connector Type	Header, Male Pins
Connector Usage	Daughtercard
Contact Finish	Gold
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	6
Number of Positions	54
Number of Positions Loaded	All
Number of Rows	9
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.055 in
Pitch [x]	1.4 mm
Termination	Press-Fit

Part	Number of Rows	Connector Style	Pitch [x]	Pitch [x]	Connector Usage	Number of Positions	Material Flammability Rating	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Termination	Contact Finish	Mounting Type	Color	Number of Columns	Features
Amphenol ICC (FCI) 10124149-102LF	9	High Speed	0.055 in	1.4 mm	Daughtercard	54	UL94 V-0	All	85 °C	-55 °C	Header Male Pins	Press-Fit	Gold	Board Edge Right Angle Through Hole	Black	6
Amphenol ICC (FCI) 10124149-112LF	9	High Speed	0.055 in	1.4 mm	Daughtercard	54	UL94 V-0	All	85 °C	-55 °C	Header Male Pins	Press-Fit	Gold	Board Edge Right Angle Through Hole	Black	6	Protective Cover

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

54 Connector Header, Male Pins Board Edge, Through Hole, Right Angle Black High Speed
