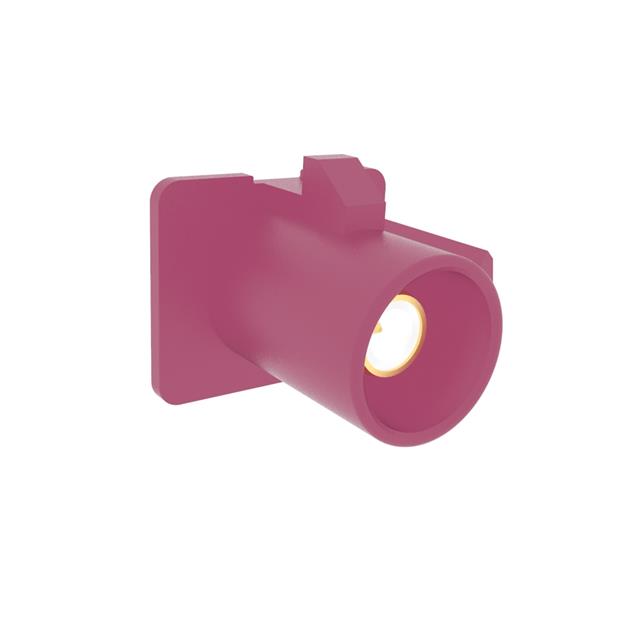

FA1-NHSP-PCB-2

Active

AMPHENOL RF

FAKRA GEN 1 PCB THROUGH HOLE STRAIGHT PLUG 50 OHM H KEY CODE

Search across all available documentation for this part.

Active

AMPHENOL RF

FAKRA GEN 1 PCB THROUGH HOLE STRAIGHT PLUG 50 OHM H KEY CODE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FA1-NHSP-PCB-2	FA1-NHSP Series

Body Finish	Gold	Nickel, Gold
Body Material	Brass	Brass
Cable Group	-	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Connector Style	SMB, Fakra	SMB, Fakra
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Solder	Crimp, Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Locking Ramp	Locking Ramp
Features	Code H	Code H
Frequency - Max [Max]	4 GHz	4 - 6000 MHz
Housing Color	Violet, Heather	Violet, Heather
Impedance	50 Ohms	50 Ohms
Includes	-	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	-	0.3 dB
Mounting Feature	-	Flange
Mounting Type	Through Hole	Board Edge, Cutout, Through Hole, Right Angle, Surface Mount, Through Hole
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 - 100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shield Termination	Solder	Crimp, Solder

CONN FAKRA PLUG STR 50 OHM CRIMP

Part	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	Fastening Type	Cable Group	Shield Termination	Body Material	Center Contact Plating	Features	Includes	Center Contact Material	Insertion Loss	Body Finish	Number of Ports	Connector Style	Mounting Feature	Housing Color	Dielectric Material	Impedance	Connector Type	Mounting Type
AMPHENOL RF FA1-NHSP-C04-1	Crimp	100 °C	-40 °C	6000 MHz	Locking Ramp	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	Crimp	Brass	Gold	Code H	1 Connector, 1 Contact, 1 Ferrule	Brass	0.3 dB	Nickel	1	Fakra, SMB	Flange	Heather, Violet	Polytetrafluoroethylene (PTFE)	50 Ohms	Male Pin, Plug
AMPHENOL RF FA1-NHSP-PCB-0	Solder	100 °C	-40 °C	4 GHz	Locking Ramp		Solder	Brass	Gold	Code H		Brass	0.3 dB	Gold	1	Fakra, SMB		Heather, Violet	Polytetrafluoroethylene (PTFE)	50 Ohms	Male Pin, Plug	Board Edge, Cutout, Surface Mount, Through Hole, Right Angle
AMPHENOL RF FA1-NHSP-PCB-2	Solder	85 °C	-40 °C	4 GHz	Locking Ramp		Solder	Brass	Gold	Code H		Brass		Gold	1	Fakra, SMB		Heather, Violet	Polytetrafluoroethylene (PTFE)	50 Ohms	Male Pin, Plug	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB, Fakra Connector Plug, Male Pin 50 Ohms Through Hole Solder
