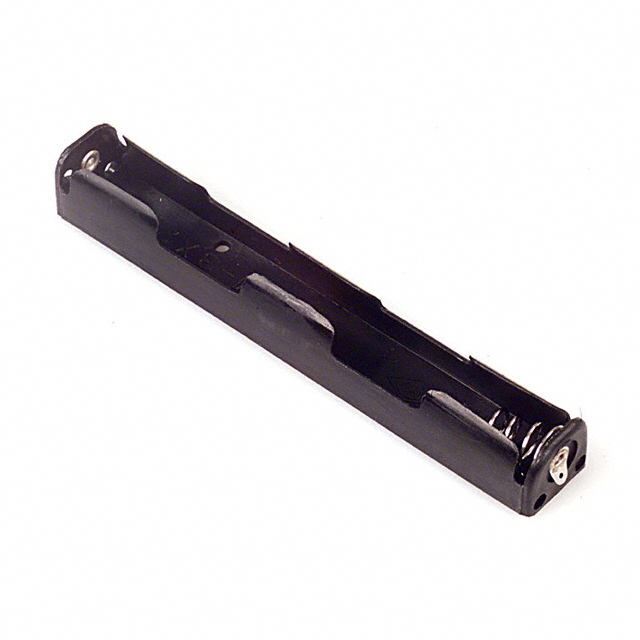

BC12AAL

Active

MPD (Memory Protection Devices)

BATT HOLDER AA 2 CELL SOLDER LUG

Search across all available documentation for this part.

Active

MPD (Memory Protection Devices)

BATT HOLDER AA 2 CELL SOLDER LUG

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BC12AAL	BC12A Series

Battery Cell Size	AA	AA
Battery Type, Function	Cylindrical, Holder	Cylindrical, Holder
Height Above Board	-	0.539 in
Height Above Board	-	13.69 mm
Mounting Type	Chassis Mount	Chassis Mount
Number of Cells	2	2
Style	Holder (Open)	Holder (Open)
Termination Style	Solder Lug	PC Pin, Wire Leads - 6" (152.4mm), Solder Lug

BATTERY HOLDER AA 2 CELL PC PIN

Part	Height Above Board [z]	Height Above Board [z]	Battery Cell Size	Termination Style	Style	Battery Type, Function	Number of Cells	Mounting Type
MPD (Memory Protection Devices) BC12AAPC	0.539 in	13.69 mm	AA	PC Pin	Holder (Open)	Cylindrical, Holder	2
MPD (Memory Protection Devices) BC12AAW			AA	Wire Leads - 6" (152.4mm)	Holder (Open)	Cylindrical, Holder	2	Chassis Mount
MPD (Memory Protection Devices) BC12AAL			AA	Solder Lug	Holder (Open)	Cylindrical, Holder	2	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Battery Holder (Open) AA 2 Cell Solder Lug
