Q-0E0720008006i

Active

Amphenol Custom Cable

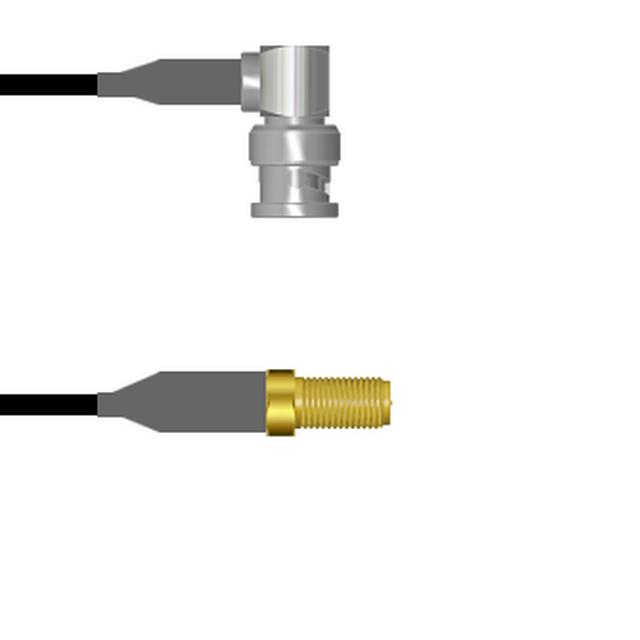

CBL ASSY RPSMA-BNC JACK-PLUG 6"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY RPSMA-BNC JACK-PLUG 6"

Technical Specifications

Parameters and characteristics for this part

Part	Color	2nd Connector Mounting Type	1st Connector Mounting Type	1st Connector	2nd Connector	Overall Impedance	1st Contact Gender	Cable Type	Length	Length	Length	Frequency - Max [Max]	Style	2nd Contact Gender	Features	Length [x]	Length [x]
Amphenol Custom Cable Q-0E0720008048i	Black	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-SMA Jack	BNC Plug Right Angle	50 Ohms	Male	RG-58	1200 mm	4 ft	48 in	4 GHz	RP-SMA to BNC	Male	Shielded
Amphenol Custom Cable Q-0E0720008024i	Black	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-SMA Jack	BNC Plug Right Angle	50 Ohms	Male	RG-58	609.6 mm		24 "	4 GHz	RP-SMA to BNC	Male	Shielded
Amphenol Custom Cable Q-0E0720008018i	Black	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-SMA Jack	BNC Plug Right Angle	50 Ohms	Male	RG-58				4 GHz	RP-SMA to BNC	Male	Shielded	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0E0720008006i	Black	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-SMA Jack	BNC Plug Right Angle	50 Ohms	Male	RG-58	152.4 mm		6 in	4 GHz	RP-SMA to BNC	Male	Shielded
Amphenol Custom Cable Q-0E0720008084i	Black	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-SMA Jack	BNC Plug Right Angle	50 Ohms	Male	RG-58	2.1 m	7 ft	84 in	4 GHz	RP-SMA to BNC	Male	Shielded
Amphenol Custom Cable Q-0E07200081.5M	Black	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-SMA Jack	BNC Plug Right Angle	50 Ohms	Male	RG-58	1.5 m	4.9 ft	59.1 in	4 GHz	RP-SMA to BNC	Male	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial RP-SMA to BNC RG-58 6.000" (152.40mm)

Technical documentation and resources

No documents available
