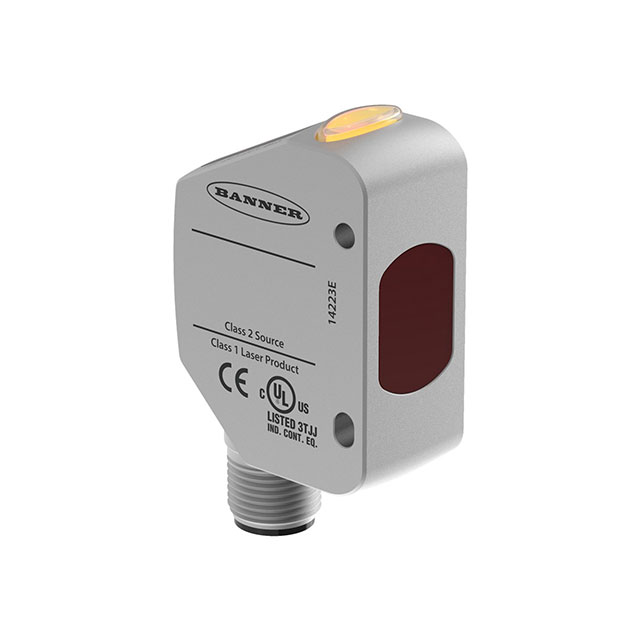

Q4XFPLAF310-Q8
ActiveBANNER ENGINEERING
PHOTOELECTRIC SENSOR, 12.2", 655NM RED LASER, BACKGROUND/FOREGROUND SUPPRESSION/PROXIMITY, DIGITAL
Q4XFPLAF310-Q8
ActiveBANNER ENGINEERING
PHOTOELECTRIC SENSOR, 12.2", 655NM RED LASER, BACKGROUND/FOREGROUND SUPPRESSION/PROXIMITY, DIGITAL
Description
General part information
Q4XFPLAF Series
Optical Sensor 1.38" ~ 12.20" (4 ~ 31cm) Output
Technical Specifications
Parameters and characteristics for this part
| Specification | Q4XFPLAF310-Q8 |
|---|---|
| Adjustment Type | Adjustable |
| Connection Method | Connector, M12 |
| Ingress Protection | IP68, IP67, IP69K |
| Light Source | Red LED |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -10 °C |
| Response Time | 500 µs |
| Sensing Distance Maximum | 12.2 " |
| Sensing Distance Minimum | 1.38 " |
| Sensing Method | Background Suppression |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
