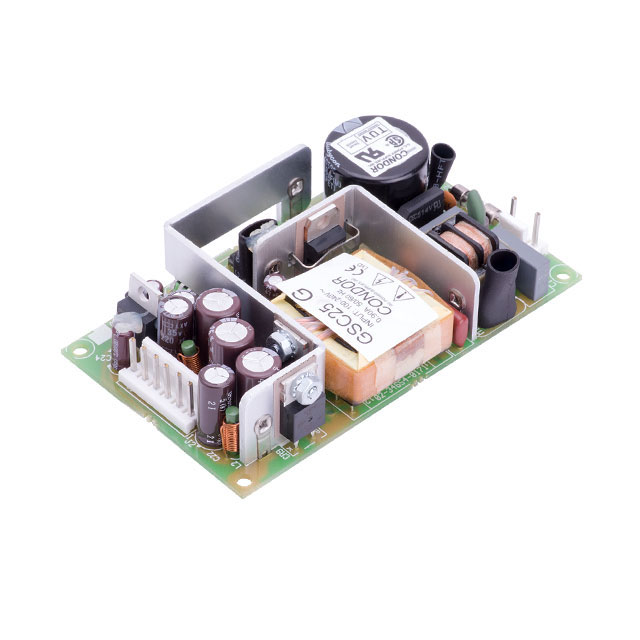

GSC25AG

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 5.1V +/-12V 25W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 5.1V +/-12V 25W

Technical Specifications

Parameters and characteristics for this part

Specification	GSC25AG

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output 1	2.5 A
Current - Output 2	1.5 A
Current - Output 3	200 mA
Efficiency	70 %
Features	Adjustable Output, Universal Input
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	25 W
Size / Dimension [x]	108 mm
Size / Dimension [x]	4.25 in
Size / Dimension [y]	2.5 in
Size / Dimension [y]	63.5 mm
Size / Dimension [z]	21.8 mm
Size / Dimension [z]	0.86 in
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output 1	5.1 V
Voltage - Output 2	12 V
Voltage - Output 3	-12 V

AC/DC CONVERTER 5.1V +/-12V 25W

Part	Features	Voltage - Output 3	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Minimum Load Required	Approval Agency	Power (Watts)	Type	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output 3	Mounting Type	Applications	Current - Output 2	Current - Output 1	Voltage - Output 2	Number of Outputs	Voltage - Output 1	Efficiency
SL POWER / Advanced Energy GSC25AG	Adjustable Output, Universal Input	-12 V	21.8 mm	2.5 in	63.5 mm	108 mm	4.25 in	0.86 in		CE, cURus, TUV	25 W	Open Frame	90 VAC	264 VAC	70 °C	0 °C	200 mA	Chassis Mount	ITE (Commercial)	1.5 A	2.5 A	12 V	3	5.1 V	70 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 3 Output 5.1V 12V -12V 90 ~ 264 VAC Input
