71V3559S80BQI
ActiveIDT, Integrated Device Technology Inc

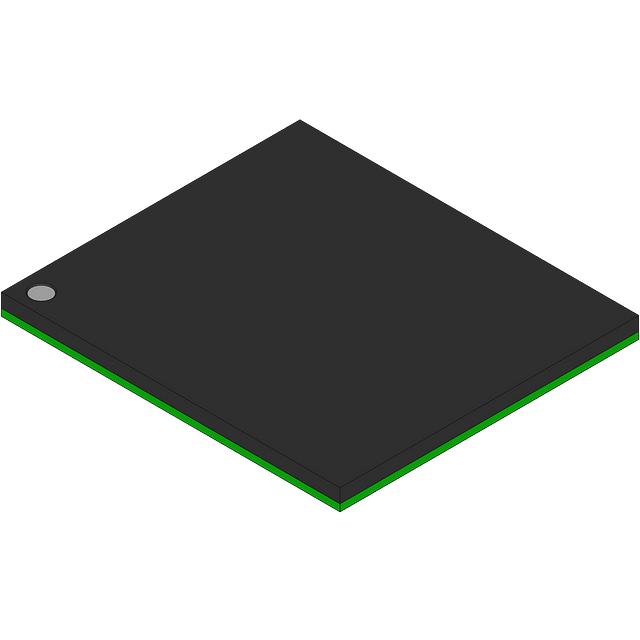

IC SRAM 4.5MBIT PAR 165CABGA
Deep-Dive with AI
Search across all available documentation for this part.
71V3559S80BQI
ActiveIDT, Integrated Device Technology Inc
IC SRAM 4.5MBIT PAR 165CABGA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 71V3559S80BQI | 71V3559 Series |
|---|---|---|
| Access Time | 8 ns | 7.5 - 8 ns |
| Memory Format | SRAM | SRAM |
| Memory Interface | Parallel | Parallel |
| Memory Organization | 256K x 18 | 256K x 18 |
| Memory Size | 4.5 Mbit | 4.5 Mbit |
| Memory Type | Volatile | Volatile |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 70 - 85 °C |
| Operating Temperature [Min] | -40 °C | -40 - 0 °C |
| Package / Case | 165-TBGA | 165-TBGA, 100-LQFP, 119-BGA |
| Supplier Device Package | 165-CABGA (13x15) | 165-CABGA (13x15), 100-TQFP (14x14), 119-PBGA (14x22) |
| Technology | SRAM - Synchronous, SDR (ZBT) | SRAM - Synchronous, SDR (ZBT) |
| Voltage - Supply [Max] | 3.465 V | 3.465 V |
| Voltage - Supply [Min] | 3.135 V | 3.135 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 33 | $ 9.16 | |
71V3559 Series
IC SRAM 4.5MBIT PAR 165CABGA
| Part | Memory Interface | Mounting Type | Memory Organization | Memory Format | Technology | Supplier Device Package | Memory Type | Access Time | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Max] | Voltage - Supply [Min] | Memory Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IDT, Integrated Device Technology Inc 71V3559S80BQI | Parallel | Surface Mount | 256K x 18 | SRAM | SRAM - Synchronous, SDR (ZBT) | 165-CABGA (13x15) | Volatile | 8 ns | 165-TBGA | 85 °C | -40 °C | 3.465 V | 3.135 V | 4.5 Mbit |
IDT, Integrated Device Technology Inc 71V3559S80PFG | Parallel | Surface Mount | 256K x 18 | SRAM | SRAM - Synchronous, SDR (ZBT) | 100-TQFP (14x14) | Volatile | 8 ns | 100-LQFP | 70 °C | 0 °C | 3.465 V | 3.135 V | 4.5 Mbit |
IDT, Integrated Device Technology Inc 71V3559S75BQ | Parallel | Surface Mount | 256K x 18 | SRAM | SRAM - Synchronous, SDR (ZBT) | 165-CABGA (13x15) | Volatile | 7.5 ns | 165-TBGA | 70 °C | 0 °C | 3.465 V | 3.135 V | 4.5 Mbit |
IDT, Integrated Device Technology Inc 71V3559S75PFGI | Parallel | Surface Mount | 256K x 18 | SRAM | SRAM - Synchronous, SDR (ZBT) | 100-TQFP (14x14) | Volatile | 7.5 ns | 100-LQFP | 85 °C | -40 °C | 3.465 V | 3.135 V | 4.5 Mbit |
IDT, Integrated Device Technology Inc 71V3559S75PFG | Parallel | Surface Mount | 256K x 18 | SRAM | SRAM - Synchronous, SDR (ZBT) | 100-TQFP (14x14) | Volatile | 7.5 ns | 100-LQFP | 70 °C | 0 °C | 3.465 V | 3.135 V | 4.5 Mbit |
IDT, Integrated Device Technology Inc 71V3559S80BG | Parallel | Surface Mount | 256K x 18 | SRAM | SRAM - Synchronous, SDR (ZBT) | 119-PBGA (14x22) | Volatile | 8 ns | 119-BGA | 70 °C | 0 °C | 3.465 V | 3.135 V | 4.5 Mbit |
Description
General part information
71V3559 Series
SRAM - Synchronous, SDR (ZBT) Memory IC 4.5Mbit Parallel 8 ns 165-CABGA (13x15)
Documents
Technical documentation and resources
No documents available
