142191-75

Active

Amphenol RF

CONN MINI SMB JACK STR 75 OHM

Search across all available documentation for this part.

Active

Amphenol RF

CONN MINI SMB JACK STR 75 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	142191-75

Body Finish	Gold
Body Material	Brass
Cable Group	187, RG-179
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Type	Male Pin, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Housing Color	Gold
Impedance	75 Ohms

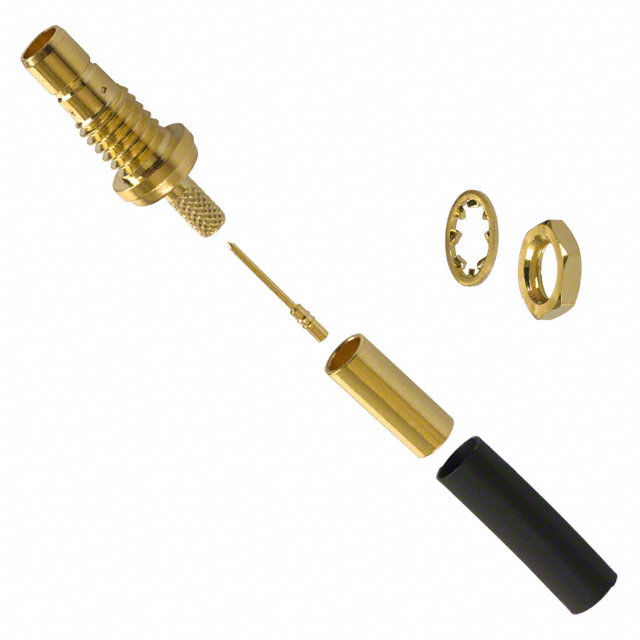

Includes	1 Nut, 1 Heat Shrink, 1 Ferrule, 1 Contact, 1 Connector, 1 Lockwasher
Insertion Loss	0.3 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Body Finish	Includes	Mating Cycles	Cable Group	Fastening Type	Dielectric Material	Mounting Feature	Shield Termination	Connector Type	Center Contact Material	Impedance	Body Material	Number of Ports	Insertion Loss	Housing Color	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination
Amphenol RF 142191-75	Gold	1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Lockwasher 1 Nut	500	187 RG-179	Snap-On	Polytetrafluoroethylene (PTFE)	Bulkhead - Front Side Nut	Crimp	Jack Male Pin	Brass	75 Ohms	Brass	1	0.3 dB	Gold	Gold	-65 ░C	165 °C	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB, Mini Connector Jack, Male Pin 75 Ohms Panel Mount Crimp

Technical documentation and resources

No documents available
