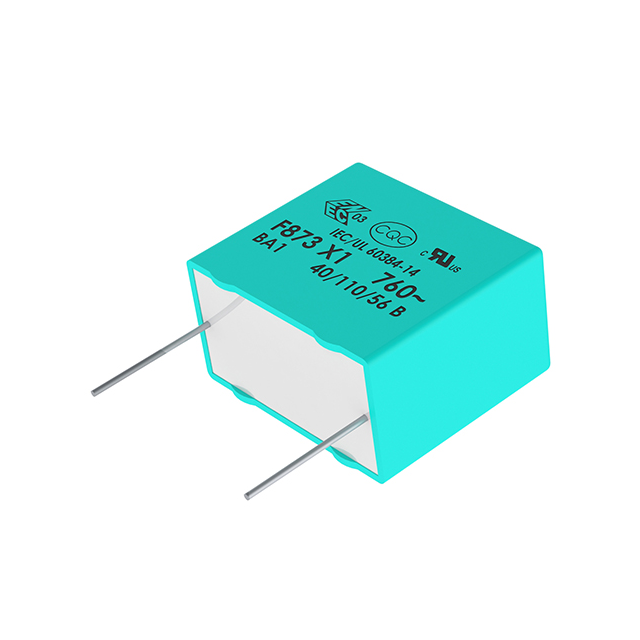

F873DP104M760L

Active

KEMET

FILM CAPACITOR, POLYPROPYLENE, 1500V, 20% +TOL, 20% -TOL, 0.1UF, THROUGH HOLE MOUNT, RADIAL LEADED

Search across all available documentation for this part.

Active

KEMET

FILM CAPACITOR, POLYPROPYLENE, 1500V, 20% +TOL, 20% -TOL, 0.1UF, THROUGH HOLE MOUNT, RADIAL LEADED

Technical Specifications

Parameters and characteristics for this part

Specification	F873DP104M760L

Applications	EMI, RFI Suppression
Capacitance	100000 pF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max] [z]	20 mm
Height - Seated (Max) [Max] [z]	0.787 "
Lead Spacing	22.5 mm
Lead Spacing	0.886 in
Mounting Type	Through Hole
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Ratings	X1
Size / Dimension [x]	1.024 in
Size / Dimension [x]	26 mm
Size / Dimension [y]	11 mm
Size / Dimension [y]	0.433 in
Termination	PC Pins
Tolerance	20 %
Voltage Rating - AC	760 V
Voltage Rating - DC	1.5 kVDC
Voltage Rating - DC	1.5 kV

Part	Mounting Type	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage Rating - AC	Voltage Rating - DC	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Lead Spacing	Lead Spacing	Package / Case	Ratings	Tolerance	Dielectric Material	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Termination
KEMET F873DP104M760L	Through Hole	EMI RFI Suppression	20 mm	0.787 "	760 V	1.5 kVDC	1.5 kV	-40 °C	110 °C	100000 pF	22.5 mm	0.886 in	Radial	X1	20 %	Metallized Polypropylene (PP)	1.024 in	26 mm	11 mm	0.433 in	PC Pins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.1 µF Film Capacitor 760V 1500V (1.5kV) Polypropylene (PP), Metallized Radial
