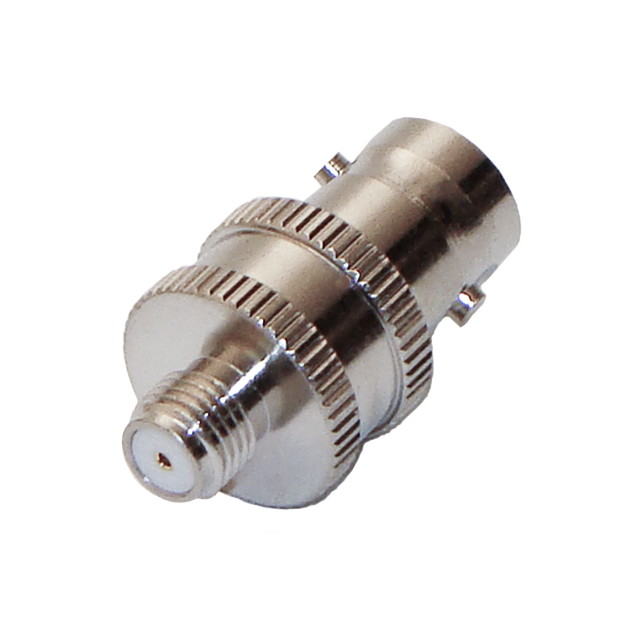

RFB-1142-4

Active

RF Industries

BNC FEMALE-MOTOROLA SMA FEMALE

Search across all available documentation for this part.

Active

RF Industries

BNC FEMALE-MOTOROLA SMA FEMALE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RFB-1142-4	RFB-1142 Series

Adapter Series	BNC to SMA	BNC to SMA
Adapter Type	Jack to Jack	Jack to Jack
Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Center Contact Material	Phosphor Bronze	Brass, Phosphor Bronze
Center Contact Plating	Gold	Gold
Center Gender	Female to Female	Female to Female
Conversion Type	Between Series	Between Series
Convert From (Adapter End)	Female Socket, SMA Jack	BNC Jack, Female Socket, SMA Jack
Convert To (Adapter End)	Female Socket, BNC Jack	SMA Jack, Female Socket, BNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded	Bayonet Lock, Threaded
Frequency - Max [Max]	4 GHz	4 GHz
Impedance	50 Ohms	50 Ohms
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Style	Straight	Straight

BNC FEMALE-SMA FEMALE QD

Part	Fastening Type	Convert To (Adapter End)	Body Finish	Adapter Series	Center Contact Material	Center Gender	Frequency - Max [Max]	Dielectric Material	Convert From (Adapter End)	Conversion Type	Mounting Type	Style	Impedance	Center Contact Plating	Adapter Type	Body Material
RF Industries RFB-1142-6	Bayonet Lock, Threaded	Female Socket, SMA Jack	Nickel	BNC to SMA	Brass	Female to Female	4 GHz	Polytetrafluoroethylene (PTFE)	BNC Jack, Female Socket	Between Series	Free Hanging (In-Line)	Straight	50 Ohms	Gold	Jack to Jack	Brass
RF Industries RFB-1142-4	Bayonet Lock, Threaded	BNC Jack, Female Socket	Nickel	BNC to SMA	Phosphor Bronze	Female to Female	4 GHz	Polytetrafluoroethylene (PTFE)	Female Socket, SMA Jack	Between Series	Free Hanging (In-Line)	Straight	50 Ohms	Gold	Jack to Jack	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To BNC Jack, Female Socket 50 Ohms
