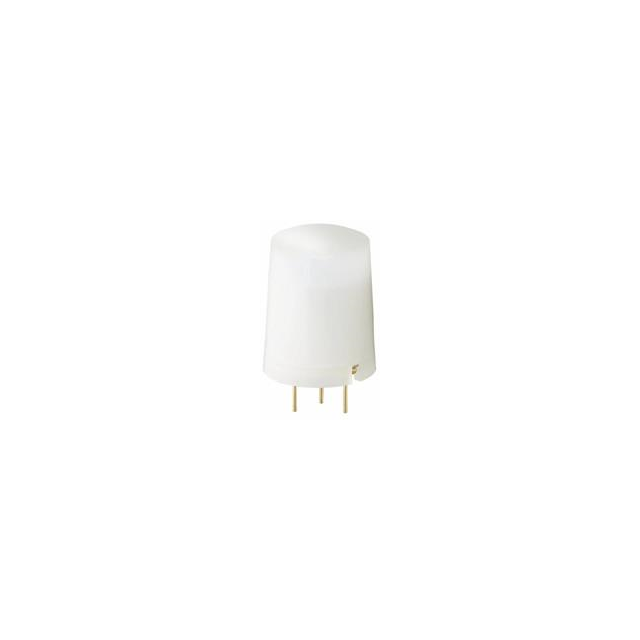

EKMB4301113K

Active

Panasonic Electric Works

SENSOR PIR 6UA DIGITAL PEARL

Search across all available documentation for this part.

Active

Panasonic Electric Works

SENSOR PIR 6UA DIGITAL PEARL

Technical Specifications

Parameters and characteristics for this part

Specification	EKMB4301113K

Features	Standard Lens, Pearl White
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Package / Case	Module
Sensing Distance	23 ft
Sensing Distance	7 m
Sensing Distance	276 in
Sensor Type	Pyroelectric, PIR (Passive Infrared), Motion
Trigger Type	Internal
Voltage - Supply [Max]	4 V
Voltage - Supply [Min]	2.3 V

Part	Sensing Distance	Sensing Distance	Sensing Distance	Package / Case	Trigger Type	Sensor Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage - Supply [Max]	Voltage - Supply [Min]
Panasonic Electric Works EKMB4301112K	23 ft	7 m	276 in	Module	Internal	Motion PIR (Passive Infrared) Pyroelectric	-20 C	60 °C	Black Standard Lens	4 V	2.3 V
Panasonic Electric Works EKMB4301113K	23 ft	7 m	276 in	Module	Internal	Motion PIR (Passive Infrared) Pyroelectric	-20 C	60 °C	Pearl White Standard Lens	4 V	2.3 V
Panasonic Electric Works EKMB4301111K	23 ft	7 m	276 in	Module	Internal	Motion PIR (Passive Infrared) Pyroelectric	-20 C	60 °C	Standard Lens White	4 V	2.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Sensor Motion, Pyroelectric, PIR (Passive Infrared) 276" (7m) 23' Standard Lens, Pearl White Module
