M52-5050445

Active

Harwin Inc.

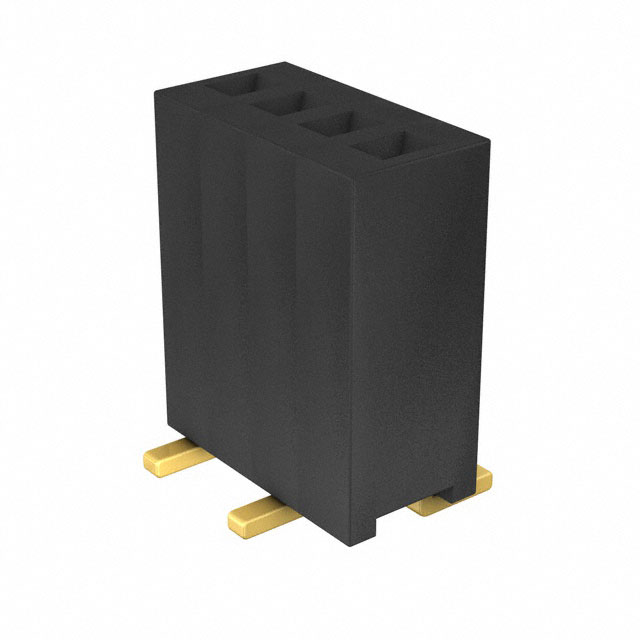

4 POS. FEMALE SIL VERTICAL SMT CONN. ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

4 POS. FEMALE SIL VERTICAL SMT CONN. ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	M52-5050445

Applications	General Purpose, Medical, Telecommunications
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	5.69 mm
Insulation Height	0.224 in
Insulation Material	Nylon 6T, Polyamide (PA6T)
Mated Stacking Heights	8.5 mm, 9.77 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Termination	Solder

Part	Mated Stacking Heights	Fastening Type	Insulation Color	Termination	Contact Finish - Mating	Insulation Height	Insulation Height	Mounting Type	Applications	Number of Positions	Connector Type	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Material	Contact Type	Contact Shape	Number of Positions Loaded	Number of Rows
Harwin Inc. M52-5050445	8.5 mm 9.77 mm	Push-Pull	Black	Solder	Gold	5.69 mm	0.224 in	Surface Mount	General Purpose Medical Telecommunications	4	Receptacle	0.05 in	1.27 mm	UL94 V-0	-40 °C	105 ░C	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Female Socket	Square	All	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
