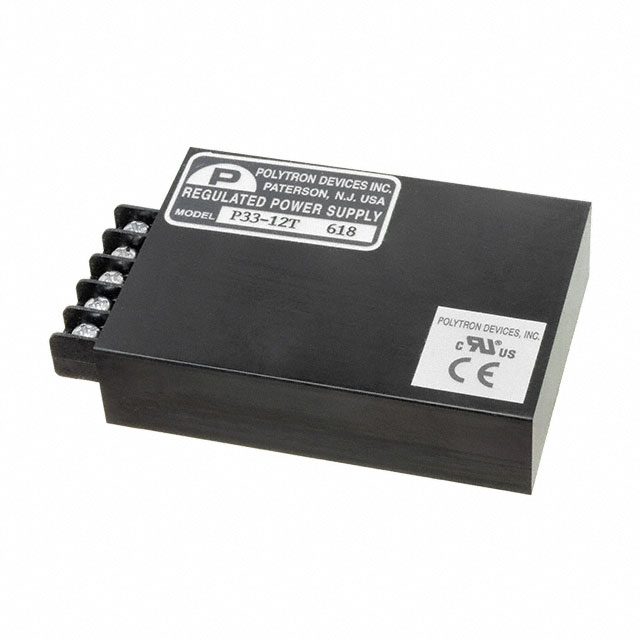

P33-24T

Active

Polytron

AC/DC CONVERTER +/-24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet P3, P5 Series Datasheet~

P33-24T

Active

Polytron

AC/DC CONVERTER +/-24V

Deep-Dive with AI

DocumentsDatasheet P3, P5 Series Datasheet~

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 200.98
		5	$ 192.95
		10	$ 189.59
		25	$ 185.24
		50	$ 182.02

Description

General part information

P33-24 Series

Enclosed AC DC Converters 2 Output 24V -24V 105 ~ 125 VAC Input

Documents

Technical documentation and resources

Datasheet

P3, P5 Series Datasheet~

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P33-24T	P33-24 Series

Applications	ITE (Commercial)	ITE (Commercial), Medical
Approval Agency	CE, cURus	CE, cURus, UL, CE, cURus
Current - Output (Max)	-	100 mA
Current - Output (Max)	-	100 mA
Current - Output (Max)	-	100 mA
Current - Output 1	100 mA	100 mA
Current - Output 2	100 mA	100 mA
Features	-	SCP
Line Regulation	-	0.1 %
Load Regulation	-	0.1 - 0.2 %
Mounting Type	Chassis Mount	Chassis Mount, Through Hole
Number of Outputs	2	1 - 2
Operating Temperature [Max]	71 °C	71 - 85 °C
Operating Temperature [Min]	-25 °C	-40 - -25 °C
Package / Case	-	7-DIP Module, 5 Leads, 5-DIP Module
Size / Dimension	-	63.5 mm
Size / Dimension	-	22.2 - 31.8 mm
Size / Dimension [x]	4.1 "	3.5 - 4.1 "
Size / Dimension [x]	104.1 mm	88.9 - 104.1 mm
Size / Dimension [y]	63.5 mm	63.5 mm
Size / Dimension [y]	2.5 in	2.5 in
Size / Dimension [z]	1.25 "	0.87 - 1.25 in
Size / Dimension [z]	31.8 mm	31.8 mm
Type	Enclosed	Enclosed
Voltage - Input [Max]	125 VAC	125 - 240 VAC
Voltage - Input [Min]	105 VAC	100 - 105 VAC
Voltage - Isolation	-	4000 V
Voltage - Output 1	24 V	24 V
Voltage - Output 2	-24 V	-24 V

P33-24 Series

AC-DC POWER MODULE 24VDC OUTPUT

Part	Current - Output 1	Applications	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output 1	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Number of Outputs	Line Regulation	Load Regulation	Current - Output (Max) [Max]	Features	Package / Case	Voltage - Output 2	Size / Dimension [y]	Size / Dimension [z]	Current - Output 2	Voltage - Isolation	Current - Output (Max)	Current - Output (Max)
Polytron P33-24ST	100 mA	ITE (Commercial)	CE, cURus, UL	-25 °C	71 °C	125 VAC	105 VAC	24 V	Enclosed	63.5 mm	22.2 mm	0.88 in	2.5 in	104.1 mm	4.1 "	Chassis Mount	1
Polytron P33-24S-04		ITE (Commercial)	CE, cURus, UL	-25 °C	71 °C	125 VAC	105 VAC	24 V	Enclosed	63.5 mm	22.4 mm	0.88 in	2.5 in	88.9 mm	3.5 in	Through Hole	1	0.1 %	0.1 %	100 mA	SCP	7-DIP Module, 5 Leads
Polytron P33-24T/MHIA	100 mA	Medical	CE, cURus	-25 °C	71 °C	125 VAC	105 VAC	24 V	Enclosed			1.25 "	2.5 in	104.1 mm	4.1 "	Chassis Mount	2						-24 V	63.5 mm	31.8 mm	100 mA	4000 V
Polytron P33-24T	100 mA	ITE (Commercial)	CE, cURus	-25 °C	71 °C	125 VAC	105 VAC	24 V	Enclosed			1.25 "	2.5 in	104.1 mm	4.1 "	Chassis Mount	2						-24 V	63.5 mm	31.8 mm	100 mA
Polytron P33-24Q		ITE (Commercial)	CE, cURus, UL	-25 °C	71 °C	125 VAC	100 VAC	24 V	Enclosed	63.5 mm	31.8 mm	1.25 "	2.5 in	88.9 mm	3.5 in	Through Hole	2	0.1 %	0.2 %		SCP	7-DIP Module, 5 Leads						100 mA	100 mA
Polytron P33-24S/22		ITE (Commercial)	CE, cURus, UL	-25 °C	71 °C	125 VAC	105 VAC	24 V	Enclosed	63.5 mm	22.4 mm	0.88 in	2.5 in	88.9 mm	3.5 in	Through Hole	1	0.1 %	0.1 %	100 mA	SCP	5-DIP Module
Polytron P33-24SX/MHIA		Medical	CE, cURus	-25 °C	71 °C	220 VAC	105 VAC	24 V	Enclosed	63.5 mm	22.2 mm	0.87 in	2.5 in	88.9 mm	3.5 in	Through Hole	1	0.1 %	0.1 %	100 mA		7-DIP Module, 5 Leads
Polytron P33-24-FST/MHIA	100 mA	Medical	CE, cURus	-25 °C	71 °C	125 VAC	105 VAC	24 V	Enclosed			1.25 "	2.5 in	104.1 mm	4.1 "	Chassis Mount	2						-24 V	63.5 mm	31.8 mm	100 mA	4000 V
Polytron P33-24S		ITE (Commercial)	CE, cURus, UL	-25 °C	71 °C	125 VAC	105 VAC	24 V	Enclosed	63.5 mm	22.4 mm	0.88 in	2.5 in	88.9 mm	3.5 in	Through Hole	1	0.1 %	0.1 %	100 mA	SCP	7-DIP Module, 5 Leads
Polytron P33-24SXE/MHIA		Medical	CE, cURus	-25 °C	71 °C	240 VAC	105 VAC	24 V	Enclosed	63.5 mm	22.2 mm	0.87 in	2.5 in	88.9 mm	3.5 in	Through Hole	1	0.1 %	0.1 %	100 mA		7-DIP Module, 5 Leads
