346-022-520-112
ActiveEDAC Inc.

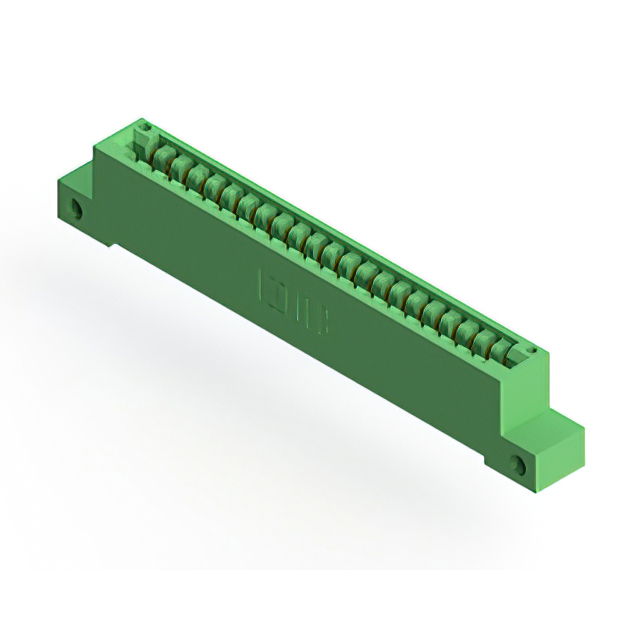

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 22 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
346-022-520-112
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 22 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-022-520-112 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 22 positions |
| Number of Positions/Bay/Row [custom] | 22 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
346-022 Series
...
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination Rows | Number of Rows | Termination | Gender | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Color | Material - Insulation | Pitch [x] | Pitch [x] | Card Type | Contact Type | Contact Material | Read Out | Features | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Mounting Type | Number of Positions/Bay/Row [custom] | Contact Finish | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Wire Wrap | Female | 22 positions | -40 °C | 105 ░C | Green | Polyester Thermoplastic | 0.125 in | 3.18 mm | Non Specified - Single Edge | Cantilever | Copper Alloy | Single | Card Guides | 10 Áin | 0.25 Ám | 4-40 Threaded Insert Top Mount Opening | Through Hole | 22 | Gold | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Solder | Female | 22 positions | -40 °C | 105 ░C | Green | Polyester Thermoplastic | 0.125 in | 3.18 mm | Non Specified - Single Edge | Cantilever | Copper Alloy | Single | 10 Áin | 0.25 Ám | Floating Bobbin Flush Mount | Through Hole | 22 | Gold | 0.116 in | 2.95 mm | |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Solder | Female | 22 positions | -40 °C | 105 ░C | Green | Polyester Thermoplastic | 0.125 in | 3.18 mm | Non Specified - Single Edge | Cantilever | Copper Alloy | Single | 10 Áin | 0.25 Ám | Flush Mount Side Opening Unthreaded | Through Hole | 22 | Gold | 0.128 " | 3.25 mm | |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 1 | Wire Wrap | Female | 22 positions | -40 °C | 105 ░C | Green | Polyester Thermoplastic | 0.125 in | 3.18 mm | Non Specified - Single Edge | Cantilever | Copper Alloy | Single | 10 Áin | 0.25 Ám | Flush Mount Top Opening Unthreaded | Through Hole | 22 | Gold | 0.156 in | 3.96 mm | |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Solder Wire Wrap | Female | 22 positions | -40 °C | 105 ░C | Green | Polyester Thermoplastic | 0.125 in | 3.18 mm | Non Specified - Dual Edge | Cantilever | Copper Alloy | Dual | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole Right Angle | 11 | Gold | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Solder Wire Wrap | Female | 22 positions | -40 °C | 105 ░C | Green | Polyester Thermoplastic | 0.125 in | 3.18 mm | Non Specified - Dual Edge | Cantilever | Copper Alloy | Dual | 10 Áin | 0.25 Ám | Flush Mount M3 Threaded Insert Top Opening | Through Hole Right Angle | 11 | Gold | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Solder | Female | 22 positions | -40 °C | 105 ░C | Green | Polyester Thermoplastic | 0.125 in | 3.18 mm | Non Specified - Dual Edge | Cantilever | Copper Alloy | Dual | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | Board Edge Straddle Mount | 11 | Gold | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Solder | Female | 22 positions | -40 °C | 105 ░C | Green | Polyester Thermoplastic | 0.125 in | 3.18 mm | Non Specified - Dual Edge | Cantilever | Copper Alloy | Dual | 10 Áin | 0.25 Ám | Top Mount Opening Unthreaded | Through Hole | 11 | Gold | 0.156 in | 3.96 mm | |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Solder Wire Wrap | Female | 22 positions | -40 °C | 105 ░C | Green | Polyester Thermoplastic | 0.125 in | 3.18 mm | Non Specified - Dual Edge | Cantilever | Copper Alloy | Dual | 10 Áin | 0.25 Ám | M3 Threaded Insert Top Mount Opening | Through Hole Right Angle | 11 | Gold | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2 | Solder | Female | 22 positions | -40 °C | 105 ░C | Green | Polyester Thermoplastic | 0.125 in | 3.18 mm | Non Specified - Dual Edge | Cantilever | Copper Alloy | Dual | 10 Áin | 0.25 Ám | M3 Threaded Insert Top Mount Opening | Through Hole | 11 | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
346-022 Series
22 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
