Technical Specifications
Parameters and characteristics for this part
| Specification | L99DZ120TR |
|---|---|
| Grade | Automotive |
| Mounting Type | Surface Mount |

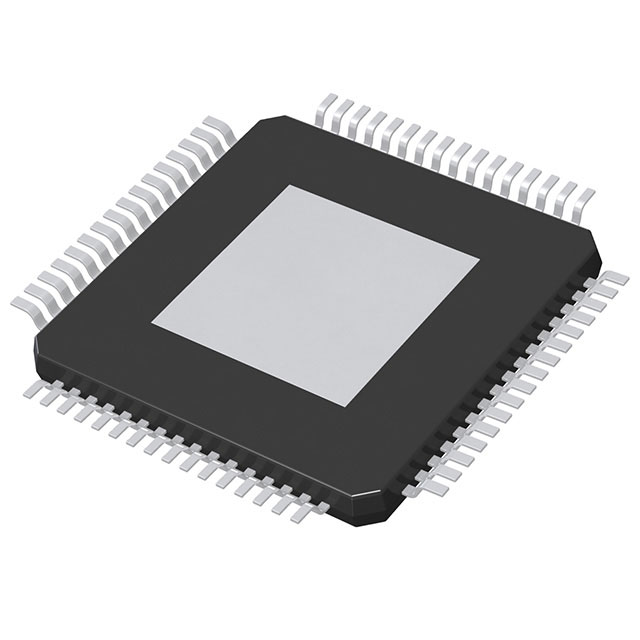

| Package / Case | 64-LQFP Exposed Pad |
| Qualification | AEC-Q100 |
| Supplier Device Package | 64-LQFP-EP (10x10) |
| Voltage - Supply [Max] | 28 V |
| Voltage - Supply [Min] | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.15 | |
| 10 | $ 6.46 | |||
| 25 | $ 6.16 | |||
| 100 | $ 5.35 | |||
| 250 | $ 5.11 | |||
| 500 | $ 4.66 | |||
| Digi-Reel® | 1 | $ 7.15 | ||
| 10 | $ 6.46 | |||
| 25 | $ 6.16 | |||
| 100 | $ 5.35 | |||
| 250 | $ 5.11 | |||
| 500 | $ 4.66 | |||
| Tape & Reel (TR) | 1000 | $ 3.83 | ||
| 2000 | $ 3.72 | |||
Description
General part information
L99DZ120 Series
The L99DZ120 is a door zone systems IC providing electronic control modules with enhanced power management power supply functionality, including various standby modes, as well as LIN physical communication layers.
The two low-drop voltage regulators of the devices supply the system microcontroller and external peripheral loads such as sensors and provide enhanced system standby functionality with programmable local and remote wake-up capability. In addition 8 high-side drivers to supply LEDs, 2 high-side drivers to supply bulbs increase the system integration level.
Up to 3 DC motors and 4 external MOS transistors in H-bridge configuration can be driven. All outputs are SC protected and implement an open-load diagnosis.
Documents
Technical documentation and resources
