M24308/23-4F
ActiveTE Connectivity Aerospace, Defense and Marine

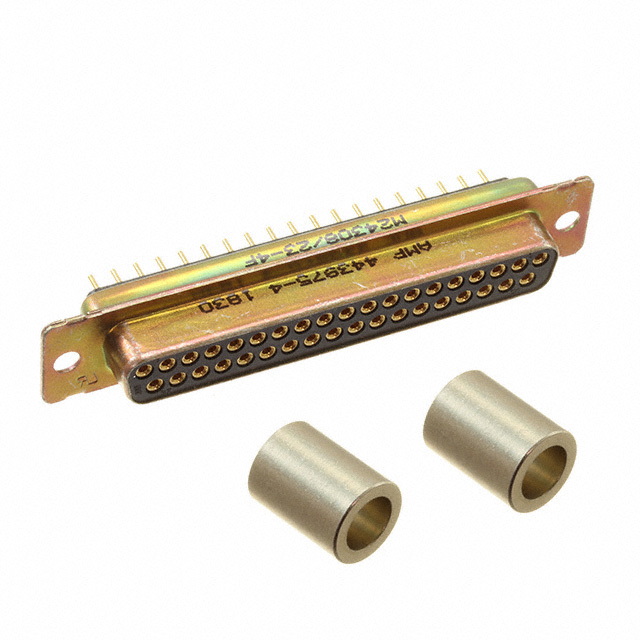

CONN D-SUB RCPT 37POS VERT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M24308/23-4F
ActiveTE Connectivity Aerospace, Defense and Marine
CONN D-SUB RCPT 37POS VERT SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M24308/23-4F | M24308/23 Series |
|---|---|---|
| Color | Black | Black |
| Connector Style | D-Sub | D-Sub |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 10 Áin | 10 Áin |
| Contact Finish Thickness | 0.25 Ám | 0.25 Ám |
| Contact Material | Brass | Brass |
| Contact Type | Signal | Signal |
| Current Rating (Amps) | 5 A | 5 A |
| Flange Feature | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 37 | 9 - 37 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Shell Material, Finish [custom] | Steel | Steel |
| Shell Material, Finish [custom] | Cadmium Plated | Cadmium Plated |
| Shell Size, Connector Layout | 4 (DC, C) | 4 (DC, C) |
| Shell Size, Connector Layout | - | 2 |
| Shell Size, Connector Layout | - | DE, E |
| Shell Size, Connector Layout | - | 1 |
| Termination | Solder | Solder |
M24308/23 Series
CONN D-SUB RCPT 37POS VERT SLDR
| Part | Contact Type | Number of Positions | Connector Style | Contact Finish | Current Rating (Amps) | Shell Material, Finish [custom] | Shell Material, Finish [custom] | Number of Rows | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size, Connector Layout | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Color | Termination | Connector Type | Contact Material | Shell Size, Connector Layout | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine M24308/23-4F | Signal | 37 | D-Sub | Gold | 5 A | Steel | Cadmium Plated | 2 | Through Hole | -55 °C | 125 °C | 4 (DC, C) | 10 Áin | 0.25 Ám | Housing/Shell (Unthreaded) | Black | Solder | Receptacle, Female Sockets | Brass | |||
TE Connectivity Aerospace, Defense and Marine M24308/23-2F | Signal | 15 | D-Sub | Gold | 5 A | Steel | Cadmium Plated | 2 | Through Hole | -55 °C | 125 °C | 10 Áin | 0.25 Ám | Housing/Shell (Unthreaded) | Black | Solder | Receptacle, Female Sockets | Brass | 2 | |||
TE Connectivity Aerospace, Defense and Marine M24308/23-10F | Signal | 37 | D-Sub | Gold | 5 A | Steel | Cadmium Plated | 2 | Through Hole | -55 °C | 125 °C | 4 (DC, C) | 10 Áin | 0.25 Ám | Housing/Shell (Unthreaded) | Black | Solder | Receptacle, Female Sockets | Brass | |||
TE Connectivity Aerospace, Defense and Marine M24308/23-1F | Signal | 9 | D-Sub | Gold | 5 A | Steel | Cadmium Plated | 2 | Through Hole | -55 °C | 125 °C | 10 Áin | 0.25 Ám | Housing/Shell (Unthreaded) | Black | Solder | Receptacle, Female Sockets | Brass | DE, E | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 37.33 | |
| 1 | $ 32.21 | |||
| 10 | $ 32.69 | |||
| 10 | $ 30.65 | |||
| 25 | $ 30.95 | |||
| 100 | $ 29.26 | |||
Description
General part information
M24308/23 Series
37 Position D-Sub Receptacle, Female Sockets Connector
Documents
Technical documentation and resources
