M24308/23-2F

Active

TE Connectivity Aerospace, Defense and Marine

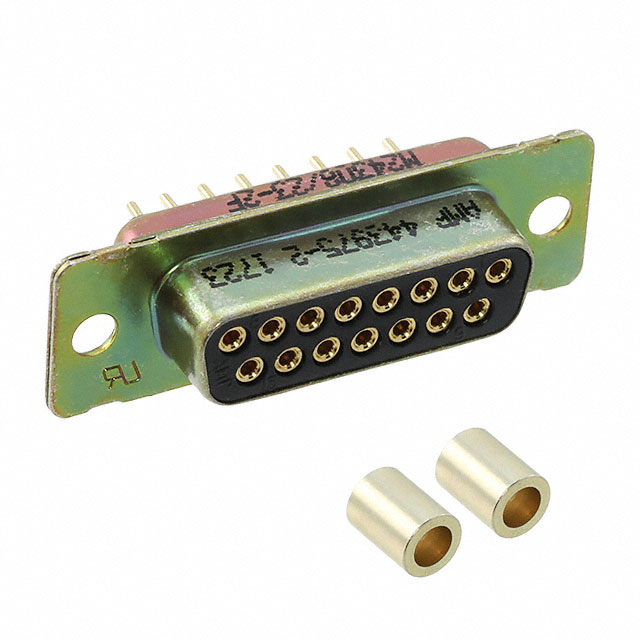

CONN D-SUB RCPT 15POS VERT SLDR

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN D-SUB RCPT 15POS VERT SLDR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position D-Sub Receptacle, Female Sockets Connector

Technical documentation and resources

Specification	M24308/23-2F	M24308/23 Series

Color	Black	Black
Connector Style	D-Sub	D-Sub
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Finish Thickness	10 Áin	10 Áin
Contact Finish Thickness	0.25 Ám	0.25 Ám
Contact Material	Brass	Brass
Contact Type	Signal	Signal
Current Rating (Amps)	5 A	5 A
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Mounting Type	Through Hole	Through Hole
Number of Positions	15	9 - 37
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish [custom]	Steel	Steel
Shell Material, Finish [custom]	Cadmium Plated	Cadmium Plated
Shell Size, Connector Layout	2	2
Shell Size, Connector Layout	-	4 (DC, C)
Shell Size, Connector Layout	-	DE, E
Shell Size, Connector Layout	-	1
Termination	Solder	Solder

Part	Contact Type	Number of Positions	Connector Style	Contact Finish	Current Rating (Amps)	Shell Material, Finish [custom]	Shell Material, Finish [custom]	Number of Rows	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, Connector Layout	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Color	Termination	Connector Type	Contact Material	Shell Size, Connector Layout	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
TE Connectivity Aerospace, Defense and Marine M24308/23-4F	Signal	37	D-Sub	Gold	5 A	Steel	Cadmium Plated	2	Through Hole	-55 °C	125 °C	4 (DC, C)	10 Áin	0.25 Ám	Housing/Shell (Unthreaded)	Black	Solder	Receptacle, Female Sockets	Brass
TE Connectivity Aerospace, Defense and Marine M24308/23-2F	Signal	15	D-Sub	Gold	5 A	Steel	Cadmium Plated	2	Through Hole	-55 °C	125 °C		10 Áin	0.25 Ám	Housing/Shell (Unthreaded)	Black	Solder	Receptacle, Female Sockets	Brass	2
TE Connectivity Aerospace, Defense and Marine M24308/23-10F	Signal	37	D-Sub	Gold	5 A	Steel	Cadmium Plated	2	Through Hole	-55 °C	125 °C	4 (DC, C)	10 Áin	0.25 Ám	Housing/Shell (Unthreaded)	Black	Solder	Receptacle, Female Sockets	Brass
TE Connectivity Aerospace, Defense and Marine M24308/23-1F	Signal	9	D-Sub	Gold	5 A	Steel	Cadmium Plated	2	Through Hole	-55 °C	125 °C		10 Áin	0.25 Ám	Housing/Shell (Unthreaded)	Black	Solder	Receptacle, Female Sockets	Brass		DE, E	1
