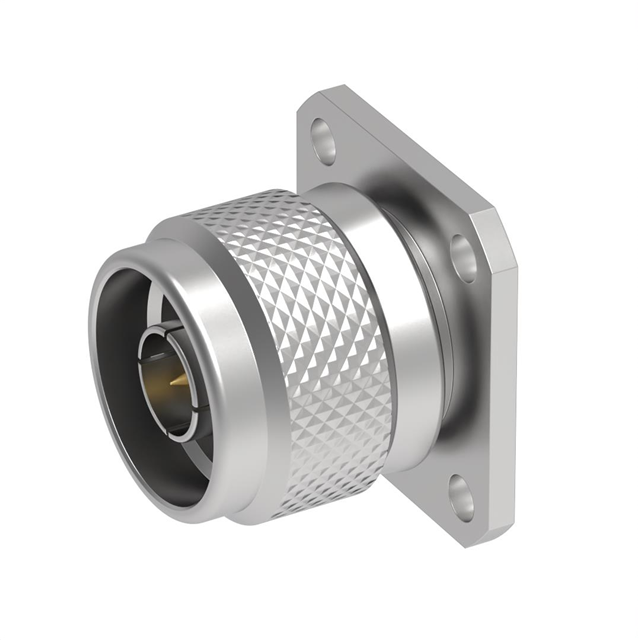

RF N CONNECTOR, FEMALE, PANEL MOUNT, SOLDER TERMINAL, RECEPTACLE

Deep-Dive with AI

Search across all available documentation for this part.

R161419020

Active

Radiall USA, Inc.

RF N CONNECTOR, FEMALE, PANEL MOUNT, SOLDER TERMINAL, RECEPTACLE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R161419020

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder Tab
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	1400 V

R16141 Series

Part	Impedance	Center Contact Material	Contact Termination	Body Finish	Housing Color	Connector Type	Voltage Rating	Number of Ports	Shield Termination	Ingress Protection	Frequency - Max [Max]	Mounting Feature	Body Material	Mounting Type	Connector Style	Insertion Loss	Mating Cycles	Dielectric Material	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Features
Radiall USA, Inc. R161410000W	50 Ohms	Bronze	Solder	White Bronze	Silver	Female Socket Jack	850 V	1	Solder	IP67 - Dust Tight Waterproof	11 GHz	Flange	Brass	Panel Mount Through Hole	N Type	0.15 dB	500	Polytetrafluoroethylene (PTFE)	Gold
Radiall USA, Inc. R161411500	50 Ohms	Beryllium Copper	Solder Tab	White Bronze	Silver	Female Socket Jack	500 V	1	Solder	IP67 - Dust Tight Waterproof	11 GHz	Flange	Brass	Panel Mount Through Hole	N Type	0.15 dB	500	Polytetrafluoroethylene (PTFE)	Gold	155 °C	-55 °C
Radiall USA, Inc. R161419300W	50 Ohms	Beryllium Copper	Solder	White Bronze	Silver	Female Socket Jack	1400 V	1	Solder	IP67 - Dust Tight Waterproof	11 GHz	Flange	Brass	Panel Mount Through Hole	N Type	0.15 dB	500	Polytetrafluoroethylene (PTFE)	Gold	155 °C	-55 °C
Radiall USA, Inc. R161419300	50 Ohms	Beryllium Copper	Solder	White Bronze	Silver	Female Socket Jack	1400 V	1	Solder	IP67 - Dust Tight Waterproof	11 GHz	Flange	Brass	Panel Mount Through Hole	N Type	0.15 dB	500	Polytetrafluoroethylene (PTFE)	Gold	155 °C	-55 °C
Radiall USA, Inc. R161410520W	50 Ohms	Beryllium Copper	Solder	White Bronze	Silver	Female Socket Jack	1400 V	1	Solder		11 GHz	Flange	Brass	Panel Mount Through Hole	N Type	0.15 dB	500	Polytetrafluoroethylene (PTFE)	Gold	155 °C	-55 °C	Extended Insulation
Radiall USA, Inc. R161410520	50 Ohms	Beryllium Copper	Solder	White Bronze	Silver	Female Socket Jack	1400 V	1	Solder		11 GHz	Flange	Brass	Panel Mount Through Hole	N Type	0.15 dB	500	Polytetrafluoroethylene (PTFE)	Gold	155 °C	-55 °C	Extended Insulation
Radiall USA, Inc. R161410130	50 Ohms	Beryllium Copper	Solder	Nickel	Silver	Female Socket Jack	1400 V	1	Solder		11 GHz	Flange	Brass		N Type		500	Polytetrafluoroethylene (PTFE)	Gold	155 °C	-55 °C	Extended Insulation
Radiall USA, Inc. R161416130W	50 Ohms	Beryllium Copper	Solder	White Bronze	Silver	Female Socket Jack	1400 V	1	Solder	IP67 - Dust Tight Waterproof	11 GHz	Flange	Brass	Panel Mount Through Hole	N Type	0.15 dB	500	Polytetrafluoroethylene (PTFE)	Gold	155 °C	-55 °C	Extended Insulation
Radiall USA, Inc. R161419020	50 Ohms	Beryllium Copper	Solder Tab	White Bronze	Silver	Female Socket Jack	1400 V	1	Solder		11 GHz	Flange	Brass	Panel Mount Through Hole	N Type	0.15 dB	500	Polytetrafluoroethylene (PTFE)	Gold	155 °C	-55 °C
Radiall USA, Inc. R161418000W	50 Ohms	Beryllium Copper	Solder Cup	White Bronze	Silver	Female Socket Jack	500 V	1	Solder		11 GHz	Flange	Brass	Panel Mount Through Hole	N Type	0.15 dB	500	Polytetrafluoroethylene (PTFE)	Gold	155 °C	-55 °C
