JAN1N3613
ActiveMicrochip Technology

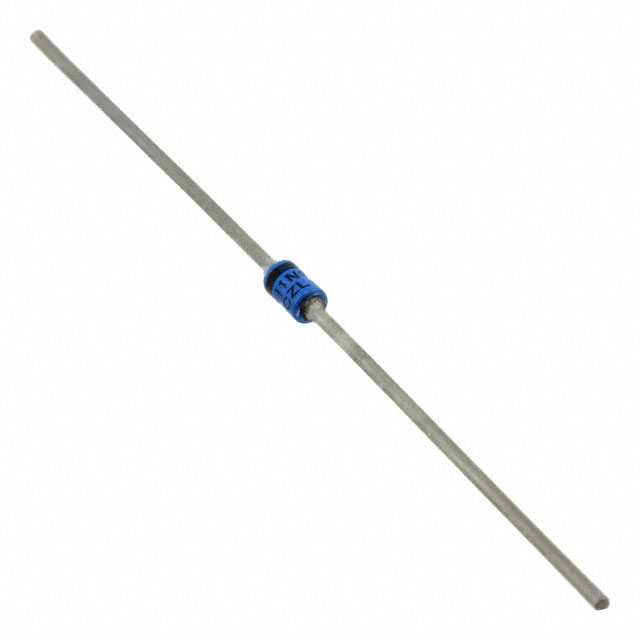

DIODE GEN PURP 600V 1A AXIAL
Deep-Dive with AI
Search across all available documentation for this part.
JAN1N3613
ActiveMicrochip Technology
DIODE GEN PURP 600V 1A AXIAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | JAN1N3613 | 1N3613 Series |
|---|---|---|
| - | - | |
| Current - Average Rectified (Io) | 1 A | 1 A |
| Current - Reverse Leakage @ Vr | 100 µA | 1 - 100 µA |
| Grade | Military | Military |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature - Junction [Max] | 175 ░C | 175 ░C |
| Operating Temperature - Junction [Min] | -65 C | -65 C |
| Package / Case | A, Axial | A, Axial |
| Qualification | MIL-PRF-19500/228 | MIL-PRF-19500/228 |
| Speed | Standard Recovery >500ns | Standard Recovery >500ns |
| Speed | 200 mA | 200 mA |
| Supplier Device Package | A, Axial | A, Axial |
| Technology | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 600 V | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V | 1.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 178 | $ 3.82 | |
1N3613 Series
DIODE GEN PURP 600V 1A AXIAL
| Part | Grade | Technology | Qualification | Speed | Speed | Voltage - Forward (Vf) (Max) @ If | Operating Temperature - Junction [Max] | Operating Temperature - Junction [Min] | Voltage - DC Reverse (Vr) (Max) [Max] | Mounting Type | Supplier Device Package | Current - Average Rectified (Io) | Current - Reverse Leakage @ Vr | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology JAN1N3613 | Military | Standard | MIL-PRF-19500/228 | Standard Recovery >500ns | 200 mA | 1.1 V | 175 ░C | -65 C | 600 V | Through Hole | A, Axial | 1 A | 100 µA | A, Axial |
Microchip Technology 1N3613 | ||||||||||||||
Microchip Technology 1N3613 | Standard | Standard Recovery >500ns | 200 mA | 1.1 V | 175 ░C | -65 C | 600 V | Through Hole | A, Axial | 1 A | 1 µA | A, Axial |
Description
General part information
1N3613 Series
Diode 600 V 1A Through Hole A, Axial
Documents
Technical documentation and resources
No documents available
