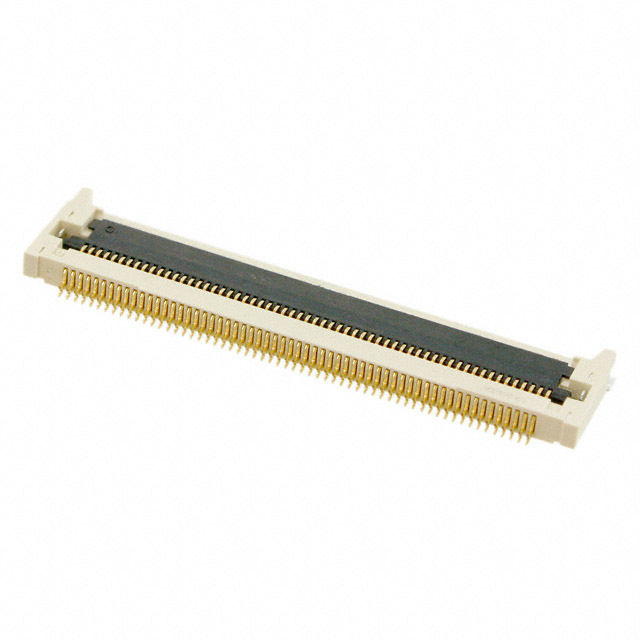

FF0360SA1

Active

JAE Electronics

CONN FPC BOTTOM 60POS 0.5MM R/A

Search across all available documentation for this part.

Active

JAE Electronics

CONN FPC BOTTOM 60POS 0.5MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	FF0360SA1

Actuator Color	Black
Actuator Material	Glass Filled, Polyamide (PA), Nylon
Cable End Type	Straight
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	500 mA
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC
Height Above Board	0.079 in
Height Above Board	2 mm
Housing Color	White
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Rotary Lock
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	60
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

Part	Flat Flex Type	Contact Finish	Contact Material	Locking Feature	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Mounting Type	Termination	Actuator Material	FFC, FCB Thickness	Connector/Contact Type	Cable End Type	Height Above Board	Height Above Board	Actuator Color	Pitch [x]	Pitch [x]	Voltage Rating	Housing Color	Number of Positions	Current Rating (Amps)
JAE Electronics FF0360SA1	FPC	Gold	Copper Alloy	Rotary Lock	Liquid Crystal Polymer (LCP)	85 °C	-40 °C	20	Surface Mount Right Angle	Solder	Glass Filled Nylon Polyamide (PA)	0.3 mm	Contacts Bottom	Straight	0.079 in	2 mm	Black	0.5 mm	0.02 in	50 V	White	60	500 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

60 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
