Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-DIGAFEV1 |
|---|---|
| Embedded | False |
| Primary Attributes [Max] | 3.6 V |
| Primary Attributes [Min] | 2.7 V |
| Supplied Contents | Board(s) |
| Type | Power Management |
| Utilized IC / Part | TSC1641 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
STEVAL-DIGAFEV1 Series

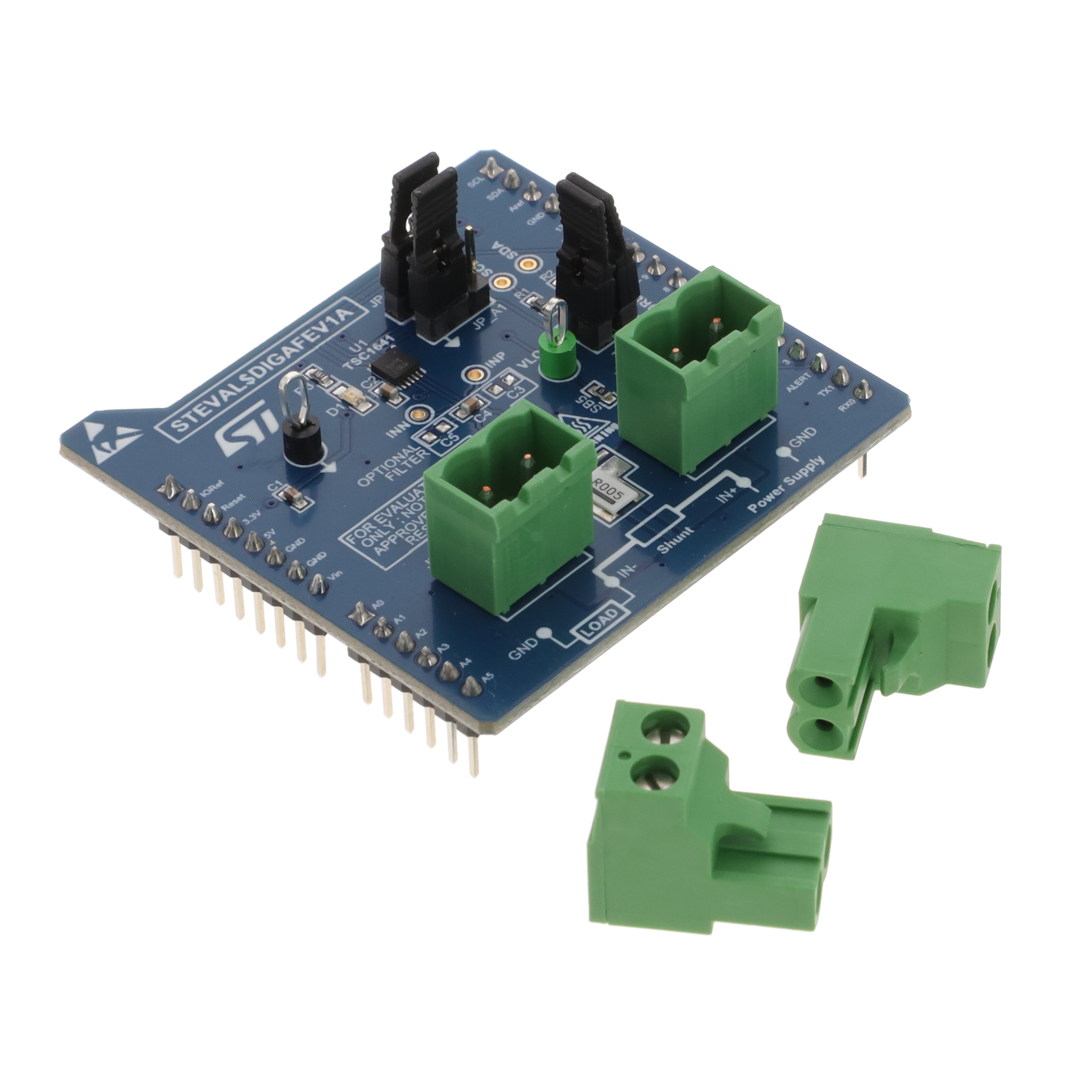

The STEVAL-DIGAFEV1 evaluation board allows the user to evaluate the performance of the TSC1641 16-bit, high precision current and power monitor with MIPI I3C/I2C interface.
The board can measure voltage up to 60 V, a load current up to 10A delivered power, and temperature based on the dual channel power monitor.
The current measurement can be high-side, low-side and bidirectional. Analog filters can be implemented on the board.
