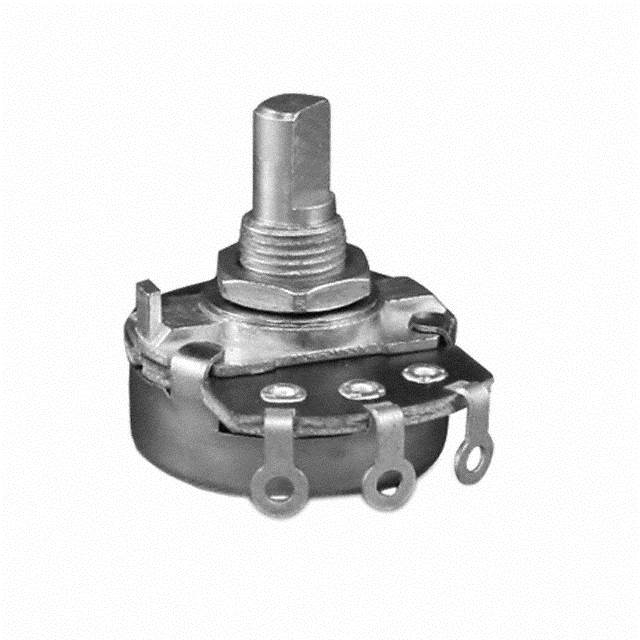

P231-FA25BR50K
ActiveTT Electronics/BI
POT 50K OHM 1/2W PLASTIC LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
P231-FA25BR50K
ActiveTT Electronics/BI
POT 50K OHM 1/2W PLASTIC LINEAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | P231-FA25BR50K | P231 Series |
|---|---|---|
| Actuator Diameter [diameter] | 0.236 in | 0.236 in |
| Actuator Diameter [diameter] | 6 mm | 6 mm |
| Actuator Length | - | 20 - 35 mm |
| Actuator Length | - | 0.591 - 1.378 in |
| Actuator Length | - | 15 mm |
| Actuator Length [x] | 0.984 in | 0.984 in |
| Actuator Length [x] | 25 mm | 25 mm |
| Actuator Type | Flatted | Flatted, Slotted, Knurled and Slotted |
| Adjustment Type | User Defined | User Defined |
| Built in Switch | False | False |
| Bushing Thread [custom] | 0.75 mm | 0.75 mm |
| Bushing Thread [diameter] | M8 | M8 |
| Number of Gangs | 1 | 1 |
| Number of Turns | 1 | 1 |
| Power (Watts) | 0.5 W | 0.5 - 250 W |
| Power (Watts) | 0.5 W | 0.25 - 0.5 W |
| Resistance (Ohms) | 50 kOhms | 1 - 500 kOhms |
| Resistance (Ohms) | - | 10k, 1M, 250k, 25k |
| Resistive Material | Conductive Plastic | Conductive Plastic |
| Rotation | 300 ░ | 300 ░ |
| Size - Body | - | 11.5 - 24 mm |
| Size - Body | - | 0.453 - 0.945 in |
| Size - Body [diameter] | 0.945 in | 0.945 in |
| Size - Body [diameter] | 24 mm | 24 mm |
| Taper | Linear | Linear, Reverse Logarithmic, Logarithmic |
| Termination Style | Solder Lug | Solder Lug |
| Tolerance | 20 % | 20 % |
P231 Series
POT 10K OHM 1/2W PLASTIC LINEAR
| Part | Number of Gangs | Resistance (Ohms) | Actuator Type | Termination Style | Rotation | Number of Turns | Bushing Thread [custom] | Bushing Thread [diameter] | Adjustment Type | Resistive Material | Tolerance | Built in Switch | Taper | Size - Body [diameter] | Size - Body [diameter] | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Power (Watts) | Power (Watts) | Actuator Length [z] | Actuator Length [z] | Resistance (Ohms) | Actuator Length | Actuator Length [x] | Actuator Length [x] | Size - Body | Size - Body |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TT Electronics/BI P231-FC35BR10K | 1 | 10k | Flatted | Solder Lug | 300 ░ | 1 | 0.75 mm | M8 | User Defined | Conductive Plastic | 20 % | Linear | 0.945 in | 24 mm | 0.236 in | 6 mm | 0.5 W | 0.5 W | 35 mm | 1.378 in | |||||||
TT Electronics/BI P231-EC20CR1MEG | 1 | 1M | Slotted | Solder Lug | 300 ░ | 1 | 0.75 mm | M8 | User Defined | Conductive Plastic | 20 % | Reverse Logarithmic | 0.945 in | 24 mm | 0.236 in | 6 mm | 250 mW | 0.25 W | 20 mm | 0.787 in | |||||||
TT Electronics/BI P231-QC20AR1MEG | 1 | 1M | Knurled and Slotted | Solder Lug | 300 ░ | 1 | 0.75 mm | M8 | User Defined | Conductive Plastic | 20 % | Logarithmic | 0.945 in | 24 mm | 0.236 in | 6 mm | 250 mW | 0.25 W | 20 mm | 0.787 in | |||||||
TT Electronics/BI P231-EC30BR50K | 1 | Slotted | Solder Lug | 300 ░ | 1 | 0.75 mm | M8 | User Defined | Conductive Plastic | 20 % | Linear | 0.945 in | 24 mm | 0.236 in | 6 mm | 0.5 W | 0.5 W | 30 mm | 1.181 in | 50 kOhms | |||||||
TT Electronics/BI P231-FC15AR1K | 1 | Flatted | Solder Lug | 300 ░ | 1 | 0.75 mm | M8 | User Defined | Conductive Plastic | 20 % | Logarithmic | 0.945 in | 24 mm | 0.236 in | 6 mm | 250 mW | 0.25 W | 0.591 in | 1 kOhms | 15 mm | |||||||
TT Electronics/BI P231-FD20BR1K | 1 | Flatted | Solder Lug | 300 ░ | 1 | 0.75 mm | M8 | User Defined | Conductive Plastic | 20 % | Linear | 0.945 in | 24 mm | 0.236 in | 6 mm | 0.5 W | 0.5 W | 20 mm | 0.787 in | 1 kOhms | |||||||
TT Electronics/BI P231-QC15BR500K | 1 | Knurled and Slotted | Solder Lug | 300 ░ | 1 | 0.75 mm | M8 | User Defined | Conductive Plastic | 20 % | Linear | 0.945 in | 24 mm | 0.236 in | 6 mm | 0.5 W | 0.5 W | 0.591 in | 500 kOhms | 15 mm | |||||||
TT Electronics/BI P231-FA20BR5K | 1 | Flatted | Solder Lug | 300 ░ | 1 | 0.75 mm | M8 | User Defined | Conductive Plastic | 20 % | Linear | 0.945 in | 24 mm | 0.236 in | 6 mm | 0.5 W | 0.5 W | 20 mm | 0.787 in | 5 kOhms | |||||||
TT Electronics/BI P231-QC20AR500K | 1 | Knurled and Slotted | Solder Lug | 300 ░ | 1 | 0.75 mm | M8 | User Defined | Conductive Plastic | 20 % | Logarithmic | 0.945 in | 24 mm | 0.236 in | 6 mm | 250 mW | 0.25 W | 20 mm | 0.787 in | 500 kOhms | |||||||
TT Electronics/BI P231-EC15AR5K | 1 | Slotted | Solder Lug | 300 ░ | 1 | 0.75 mm | M8 | User Defined | Conductive Plastic | 20 % | Logarithmic | 0.945 in | 24 mm | 0.236 in | 6 mm | 250 mW | 0.25 W | 0.591 in | 5 kOhms | 15 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.42 | |
| 10 | $ 2.04 | |||
| 100 | $ 1.71 | |||
| 700 | $ 1.47 | |||
| 1400 | $ 1.39 | |||
| 5600 | $ 1.25 | |||
Description
General part information
P231 Series
50k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.5W, 1/2W Solder Lug
