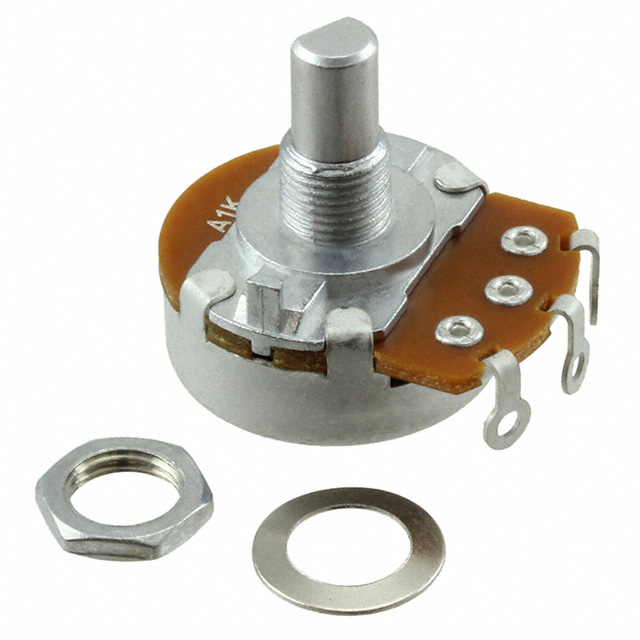

P231-FC15AR1K

Active

TT Electronics/BI

POT 1K OHM 1/4W PLASTIC LOG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P231-FC15AR1K

Active

TT Electronics/BI

POT 1K OHM 1/4W PLASTIC LOG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.77
		10	$ 2.43
		25	$ 2.18
		40	$ 2.10
		80	$ 2.01
		230	$ 1.93
		700	$ 1.59
		1400	$ 1.51
		4900	$ 1.26

Description

General part information

P231 Series

1k Ohm 1 Gang Logarithmic Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.25W, 1/4W Solder Lug

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P231-FC15AR1K	P231 Series

Actuator Diameter [diameter]	0.236 in	0.236 in
Actuator Diameter [diameter]	6 mm	6 mm
Actuator Length	15 mm	15 mm
Actuator Length	-	20 - 35 mm
Actuator Length	-	0.984 in
Actuator Length	-	25 mm
Actuator Length [z]	0.591 in	0.591 - 1.378 in
Actuator Type	Flatted	Flatted, Slotted, Knurled and Slotted
Adjustment Type	User Defined	User Defined
Built in Switch	False	False
Bushing Thread [custom]	0.75 mm	0.75 mm
Bushing Thread [diameter]	M8	M8
Number of Gangs	1	1
Number of Turns	1	1
Power (Watts)	0.25 W	0.25 - 0.5 W
Power (Watts)	250 mW	0.5 - 250 W
Resistance (Ohms)	1 kOhms	1 - 500 kOhms
Resistance (Ohms)	-	10k, 1M, 250k, 25k
Resistive Material	Conductive Plastic	Conductive Plastic
Rotation	300 ░	300 ░
Size - Body	-	11.5 - 24 mm
Size - Body	-	0.453 - 0.945 in
Size - Body [diameter]	0.945 in	0.945 in
Size - Body [diameter]	24 mm	24 mm
Taper	Logarithmic	Linear, Reverse Logarithmic, Logarithmic
Termination Style	Solder Lug	Solder Lug
Tolerance	20 %	20 %

P231 Series

POT 10K OHM 1/2W PLASTIC LINEAR

Part	Number of Gangs	Resistance (Ohms)	Actuator Type	Termination Style	Rotation	Number of Turns	Bushing Thread [custom]	Bushing Thread [diameter]	Adjustment Type	Resistive Material	Tolerance	Taper	Size - Body [diameter]	Size - Body [diameter]	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Power (Watts)	Power (Watts)	Actuator Length [z]	Actuator Length [z]	Resistance (Ohms)	Actuator Length
TT Electronics/BI P231-FC35BR10K	1	10k	Flatted	Solder Lug	300 ░	1	0.75 mm	M8	User Defined	Conductive Plastic	20 %	Linear	0.945 in	24 mm	0.236 in	6 mm	0.5 W	0.5 W	35 mm	1.378 in
TT Electronics/BI P231-EC20CR1MEG	1	1M	Slotted	Solder Lug	300 ░	1	0.75 mm	M8	User Defined	Conductive Plastic	20 %	Reverse Logarithmic	0.945 in	24 mm	0.236 in	6 mm	250 mW	0.25 W	20 mm	0.787 in
TT Electronics/BI P231-QC20AR1MEG	1	1M	Knurled and Slotted	Solder Lug	300 ░	1	0.75 mm	M8	User Defined	Conductive Plastic	20 %	Logarithmic	0.945 in	24 mm	0.236 in	6 mm	250 mW	0.25 W	20 mm	0.787 in
TT Electronics/BI P231-EC30BR50K	1		Slotted	Solder Lug	300 ░	1	0.75 mm	M8	User Defined	Conductive Plastic	20 %	Linear	0.945 in	24 mm	0.236 in	6 mm	0.5 W	0.5 W	30 mm	1.181 in	50 kOhms
TT Electronics/BI P231-FC15AR1K	1		Flatted	Solder Lug	300 ░	1	0.75 mm	M8	User Defined	Conductive Plastic	20 %	Logarithmic	0.945 in	24 mm	0.236 in	6 mm	250 mW	0.25 W		0.591 in	1 kOhms	15 mm
TT Electronics/BI P231-FD20BR1K	1		Flatted	Solder Lug	300 ░	1	0.75 mm	M8	User Defined	Conductive Plastic	20 %	Linear	0.945 in	24 mm	0.236 in	6 mm	0.5 W	0.5 W	20 mm	0.787 in	1 kOhms
TT Electronics/BI P231-QC15BR500K	1		Knurled and Slotted	Solder Lug	300 ░	1	0.75 mm	M8	User Defined	Conductive Plastic	20 %	Linear	0.945 in	24 mm	0.236 in	6 mm	0.5 W	0.5 W		0.591 in	500 kOhms	15 mm
TT Electronics/BI P231-FA20BR5K	1		Flatted	Solder Lug	300 ░	1	0.75 mm	M8	User Defined	Conductive Plastic	20 %	Linear	0.945 in	24 mm	0.236 in	6 mm	0.5 W	0.5 W	20 mm	0.787 in	5 kOhms
TT Electronics/BI P231-QC20AR500K	1		Knurled and Slotted	Solder Lug	300 ░	1	0.75 mm	M8	User Defined	Conductive Plastic	20 %	Logarithmic	0.945 in	24 mm	0.236 in	6 mm	250 mW	0.25 W	20 mm	0.787 in	500 kOhms
TT Electronics/BI P231-EC15AR5K	1		Slotted	Solder Lug	300 ░	1	0.75 mm	M8	User Defined	Conductive Plastic	20 %	Logarithmic	0.945 in	24 mm	0.236 in	6 mm	250 mW	0.25 W		0.591 in	5 kOhms	15 mm
