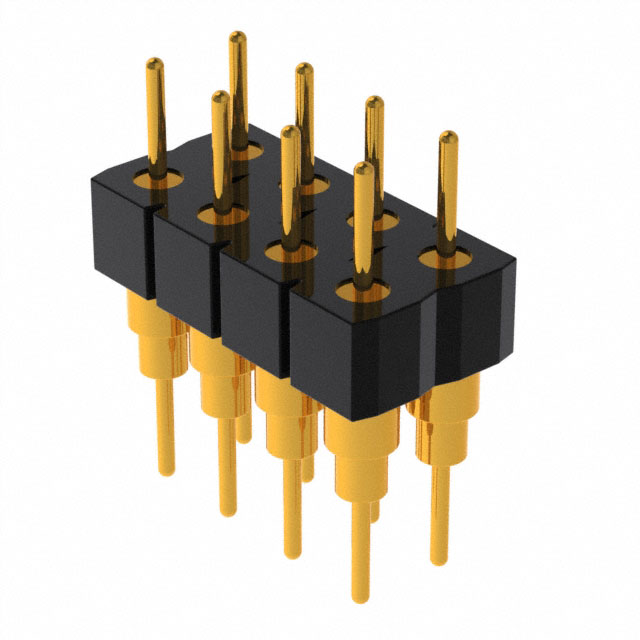

BBD-104-G-A

Active

Samtec Inc.

NICKEL STRAIGHT ROUND NEEDLE 5.35MM 8P 3.18MM -55℃~+125℃ 3.18MM 2.54MM DOUBLE ROW BLACK 2.54MM PLUGIN,P=2.54MM PIN HEADERS ROHS

Search across all available documentation for this part.

Active

Samtec Inc.

NICKEL STRAIGHT ROUND NEEDLE 5.35MM 8P 3.18MM -55℃~+125℃ 3.18MM 2.54MM DOUBLE ROW BLACK 2.54MM PLUGIN,P=2.54MM PIN HEADERS ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	BBD-104-G-A

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Nickel
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Mating	0.125 in
Contact Length - Mating	3.18 mm
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	5.35 mm
Insulation Height [z]	0.211 in
Insulation Material	Polyester, Glass Filled
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	11.68 mm
Overall Contact Length	0.46 "
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

Part	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Number of Rows	Termination	Contact Shape	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Contact Finish - Mating	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height [z]	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Shrouding	Insulation Color	Insulation Height	Insulation Height	Overall Contact Length
Samtec Inc. BBD-104-G-A	0.125 in	3.18 mm	Nickel	2	Solder	Circular	Male Pin	2.54 mm	0.1 in	0.51 µm	20 µin	Polyester Glass Filled	Gold	Through Hole	1.27 µm	50 µin	Push-Pull	0.1 in	2.54 mm	5.35 mm	0.211 in	8	-55 °C	125 °C	Header	11.68 mm	0.46 "	3.18 mm	0.125 in	All	Unshrouded	Black
Samtec Inc. BBD-104-T-B	0.125 in	3.18 mm	Nickel	2	Solder	Circular	Male Pin	2.54 mm	0.1 in			Polyester Glass Filled		Through Hole	1.27 µm	50 µin	Push-Pull	0.1 in	2.54 mm			8	-55 °C	125 °C	Header	0.585 in		3.18 mm	0.125 in	All	Unshrouded	Black	0.335 "	8.51 mm	14.86 mm
Samtec Inc. BBD-104-G-D	0.125 in	3.18 mm	Nickel	2	Solder	Circular	Male Pin	2.54 mm	0.1 in	0.51 µm	20 µin	Polyester Glass Filled	Gold	Through Hole	1.27 µm	50 µin	Push-Pull	0.1 in	2.54 mm			8	-55 °C	125 °C	Header			3.18 mm	0.125 in	All	Unshrouded	Black	0.835 "	21.21 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 8 position 0.100" (2.54mm)
