MASW-008955-TR3000
ActiveMACOM Technology Solutions
IC RF SWITCH SP3T 3.5GHZ 8DFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MASW-008955-TR3000
ActiveMACOM Technology Solutions
IC RF SWITCH SP3T 3.5GHZ 8DFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MASW-008955-TR3000 |
|---|---|
| Circuit | SP3T |
| Frequency Range [Max] | 3.5 GHz |
| Frequency Range [Min] | 0 Hz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.6 dB |
| Isolation | 20 dB |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| P1dB | 36 dBm |

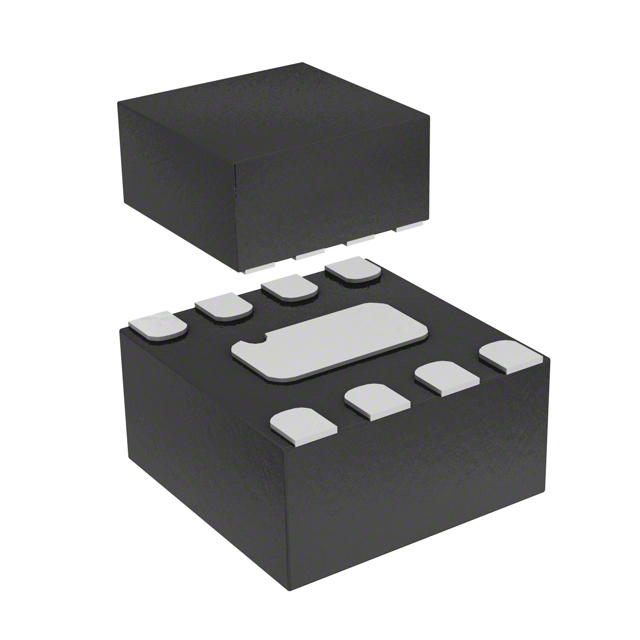

| Package / Case | 8-VFDFN Exposed Pad |
| RF Type | Bluetooth, WLAN |
| Supplier Device Package | 8-PDFN (2x2) |
| Test Frequency | 2.45 GHz |
| Topology | Reflective |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.94 | |
| 10 | $ 1.74 | |||
| 25 | $ 1.64 | |||
| 100 | $ 1.40 | |||
| 250 | $ 1.31 | |||
| 500 | $ 1.15 | |||
| 1000 | $ 0.95 | |||
| Digi-Reel® | 1 | $ 1.94 | ||
| 10 | $ 1.74 | |||
| 25 | $ 1.64 | |||
| 100 | $ 1.40 | |||
| 250 | $ 1.31 | |||
| 500 | $ 1.15 | |||
| 1000 | $ 0.95 | |||
| Tape & Reel (TR) | 3000 | $ 0.89 | ||
| 6000 | $ 0.85 | |||
Description
General part information
MASW-008955 Series
RF Switch IC Bluetooth, WLAN SP3T 3.5 GHz 50Ohm 8-PDFN (2x2)
