2303-6111-TP

Active

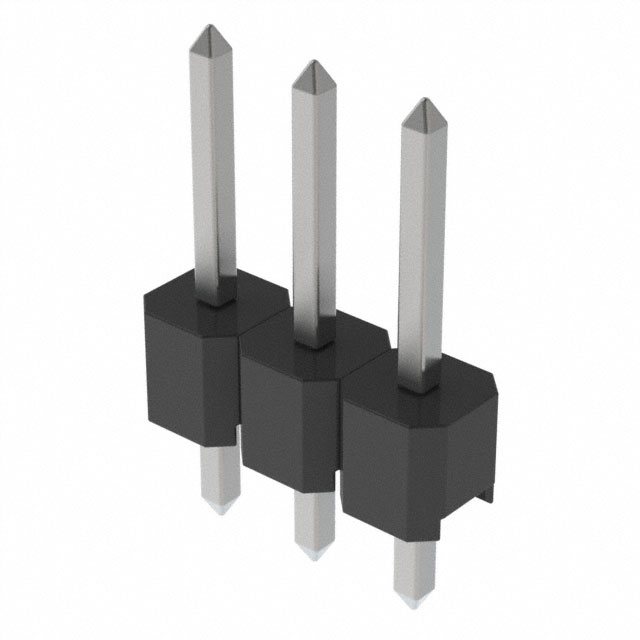

CONN HEADER VERT 3POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2303-6111-TP

Active

CONN HEADER VERT 3POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

2303 Series

Connector Header Through Hole 3 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2303-6111-TP	2303 Series

Connector Type	Header	Header
Contact Finish - Mating	Tin-Lead	Tin-Lead, Gold
Contact Finish - Post	Tin-Lead	Tin-Lead
Contact Finish Thickness - Mating	-	10 çin
Contact Finish Thickness - Mating	-	0.25 çm
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating	5.84 mm	5.84 mm
Contact Length - Mating	-	8.08 mm
Contact Length - Mating [x]	0.23 in	0.23 - 0.318 in
Contact Length - Post [x]	0.12 in	0.12 in
Contact Length - Post [x]	3.05 mm	3.05 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	0.1 in	0.1 in
Insulation Height	2.54 mm	2.54 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	0.45 "	0.45 - 0.538 "
Overall Contact Length	11.43 mm	11.43 - 13.67 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

2303 Series

CONN HEADER VERT 3POS 2.54MM

Part	Fastening Type	Mounting Type	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Material Flammability Rating	Contact Length - Mating [x]	Contact Length - Mating	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Material	Shrouding	Number of Rows	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Style	Contact Type	Pitch - Mating	Pitch - Mating	Termination	Current Rating (Amps)	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating [x]
3M 2303-6111-TP	Push-Pull	Through Hole	Square	2.54 µm	100 µin	105 ░C	-55 °C	Black	0.45 "	11.43 mm	Tin-Lead	UL94 V-0	0.23 in	5.84 mm	All	0.1 in	2.54 mm	Copper Alloy	Unshrouded	1	Tin-Lead	0.12 in	3.05 mm	Board to Board, Cable	Male Pin	0.1 in	2.54 mm	Solder	3 A	Header
3M 2303-6211-TG	Push-Pull	Through Hole	Square	2.54 µm	100 µin	105 ░C	-55 °C	Black	0.538 "	13.67 mm	Gold	UL94 V-0	0.318 "		All	0.1 in	2.54 mm	Copper Alloy	Unshrouded	1	Tin-Lead	0.12 in	3.05 mm	Board to Board, Cable	Male Pin	0.1 in	2.54 mm	Solder	3 A	Header	10 çin	0.25 çm	8.08 mm
3M 2303-6111-TG	Push-Pull	Through Hole	Square	2.54 µm	100 µin	105 ░C	-55 °C	Black	0.45 "	11.43 mm	Gold	UL94 V-0	0.23 in	5.84 mm	All	0.1 in	2.54 mm	Copper Alloy	Unshrouded	1	Tin-Lead	0.12 in	3.05 mm	Board to Board, Cable	Male Pin	0.1 in	2.54 mm	Solder	3 A	Header	10 çin	0.25 çm
3M 2303-6211-TP	Push-Pull	Through Hole	Square	2.54 µm	100 µin	105 ░C	-55 °C	Black	0.538 "	13.67 mm	Tin-Lead	UL94 V-0	0.318 "		All	0.1 in	2.54 mm	Copper Alloy	Unshrouded	1	Tin-Lead	0.12 in	3.05 mm	Board to Board, Cable	Male Pin	0.1 in	2.54 mm	Solder	3 A	Header			8.08 mm
