8250-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.

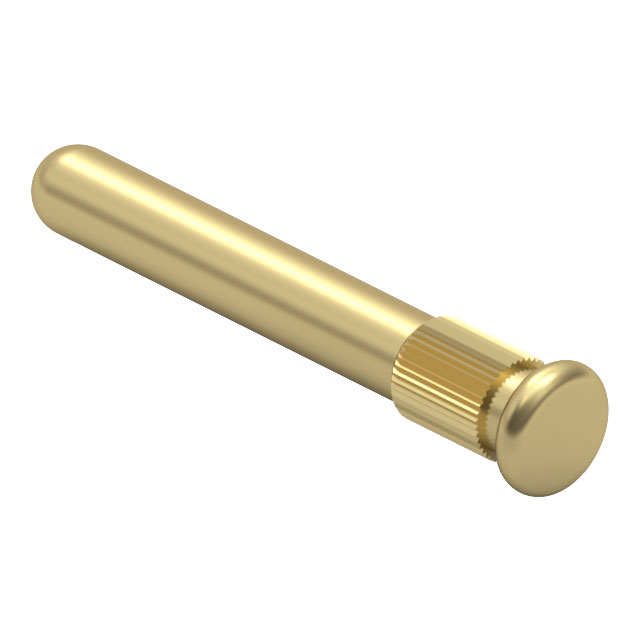

.230" LONG PRESS-FIT PIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8250-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
.230" LONG PRESS-FIT PIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8250-0-00-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 0.045 in |
| Flange Diameter [diameter] | 1.14 mm |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 5.53 mm |
| Length - Above Flange [x] | 0.218 " |
| Mounting Hole Diameter [diameter] | 0.86 mm |
| Mounting Hole Diameter [diameter] | 0.034 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.76 mm |
| Pin Size - Above Flange [diameter] | 0.03 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Knurled, Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.17 | |
| 10 | $ 0.14 | |||
| 25 | $ 0.13 | |||
| 50 | $ 0.12 | |||
| 100 | $ 0.11 | |||
| 250 | $ 0.10 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.08 | |||
| 3000 | $ 0.07 | |||
Description
General part information
8250-0 Series
PC Pin Terminal Connector Through Hole Gold 0.030" (0.76mm) Dia
